| Model |
DOUBLE |
DOUBLE |
DOUBLE |
| CMCF500UDH-SP |
CMCF700UDH-SP |
CMCF870UDH-SP |
| Capacity |
514L |
732L |
876L |

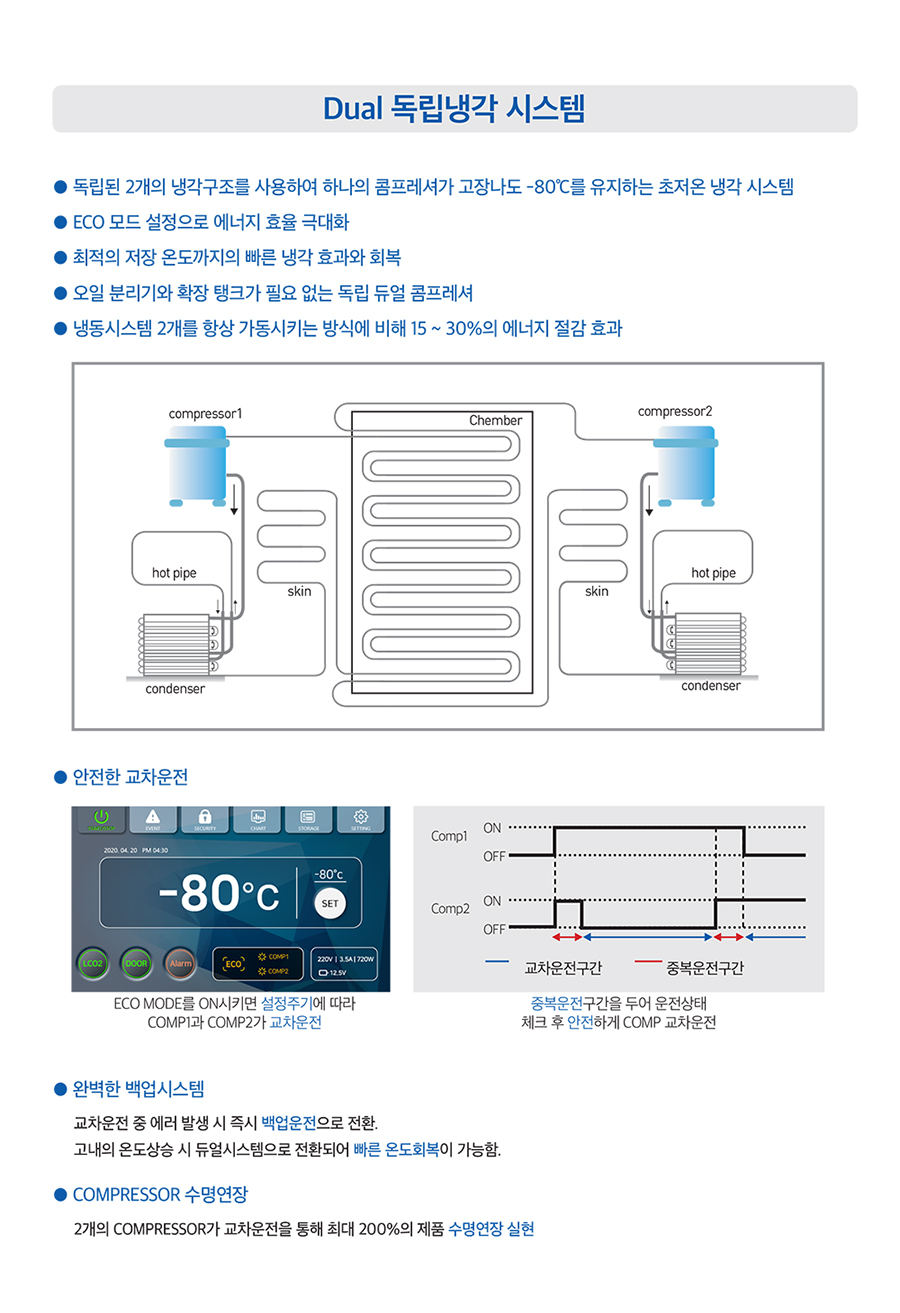

| Freezing System |
Dual Simplified Hi-Effiency Freezing System |
| Temp |
Range |
-90 ~ -60℃ |
| ECO MODE : -80 ~ -60℃ |
| At room temperature of 30℃ and humidity of 70% |
| Sensor |
PT 100 Sensor |
| Compressor |
Hermetic Type |
| Condenser Type |
Block Condenser, No Pin, Filter Free Mechanism |
| Refrigerant |
CFC Free Refrigerant System |

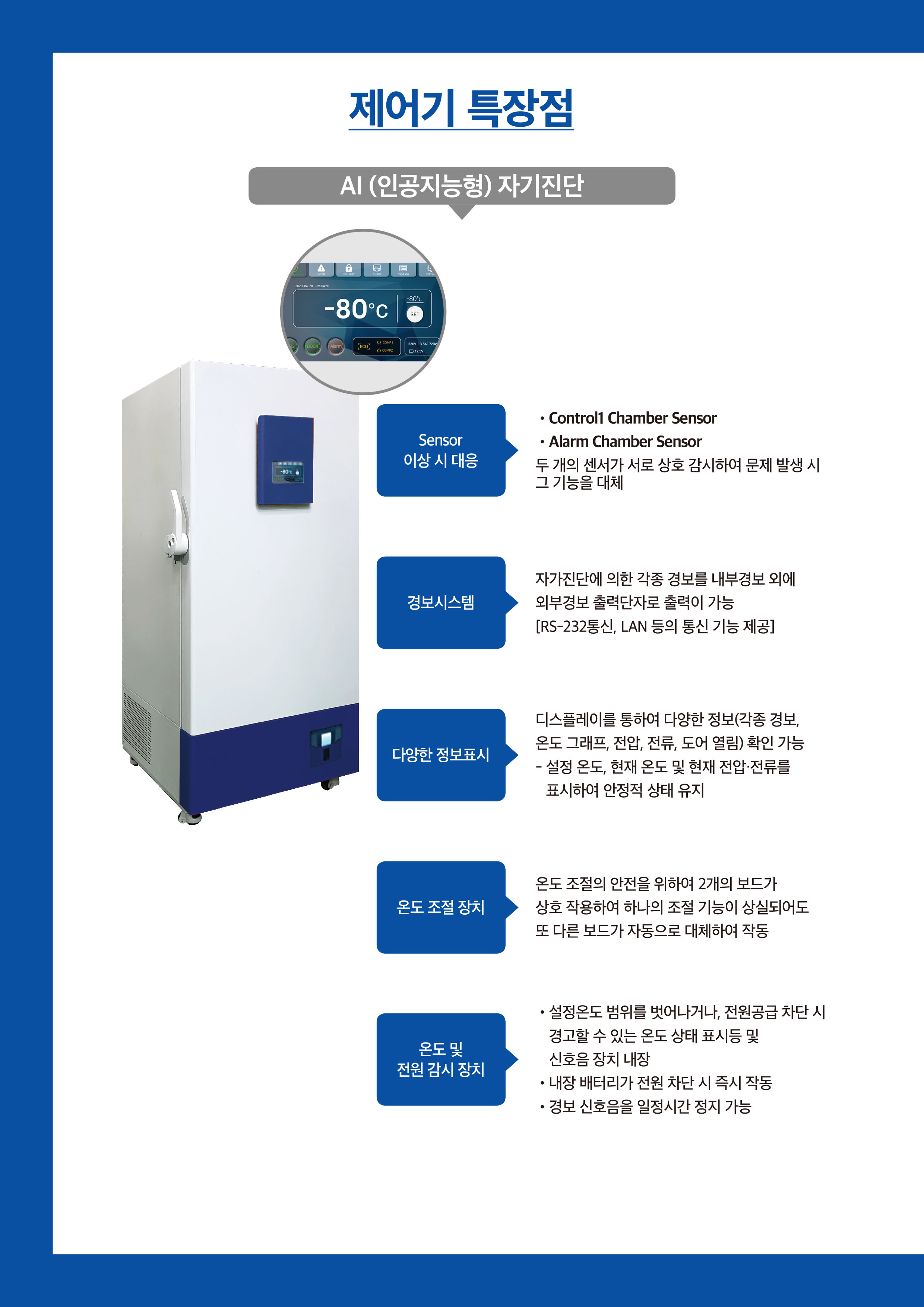

| Controller & Display |

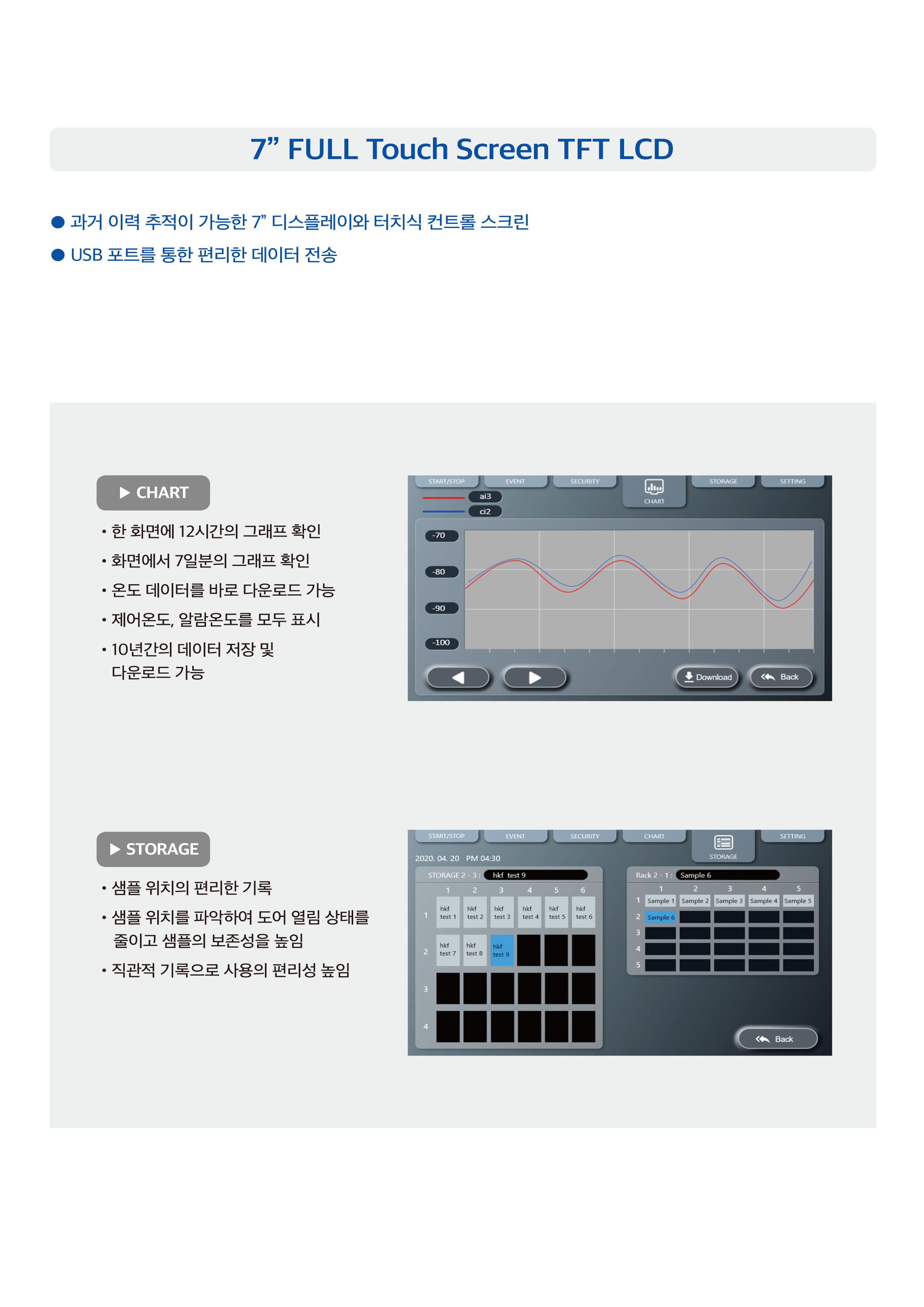

7" Full Touch Screen TFT LCD (Touch Controller) |
| Shelves |
Included 3 Stainless Steel Shelves |
| Max. Q'tyof Racks |
16pcs of 20(4x5) |
24pcs of 20(4x5) |
24pcs of 25(5x5) |
| - Placed Rack |
- Placed Rack |
- Placed Rack |
| Material |
Internal |
Stainless Steel (#304) |
| External |
Powder Coated Steel Plate |
| InnerDoor |
Powder Coated Stainless Steel (#304) |
| Other |
CFC-Free Refrigerants |
| Touch Screen TFT LCD Controller |

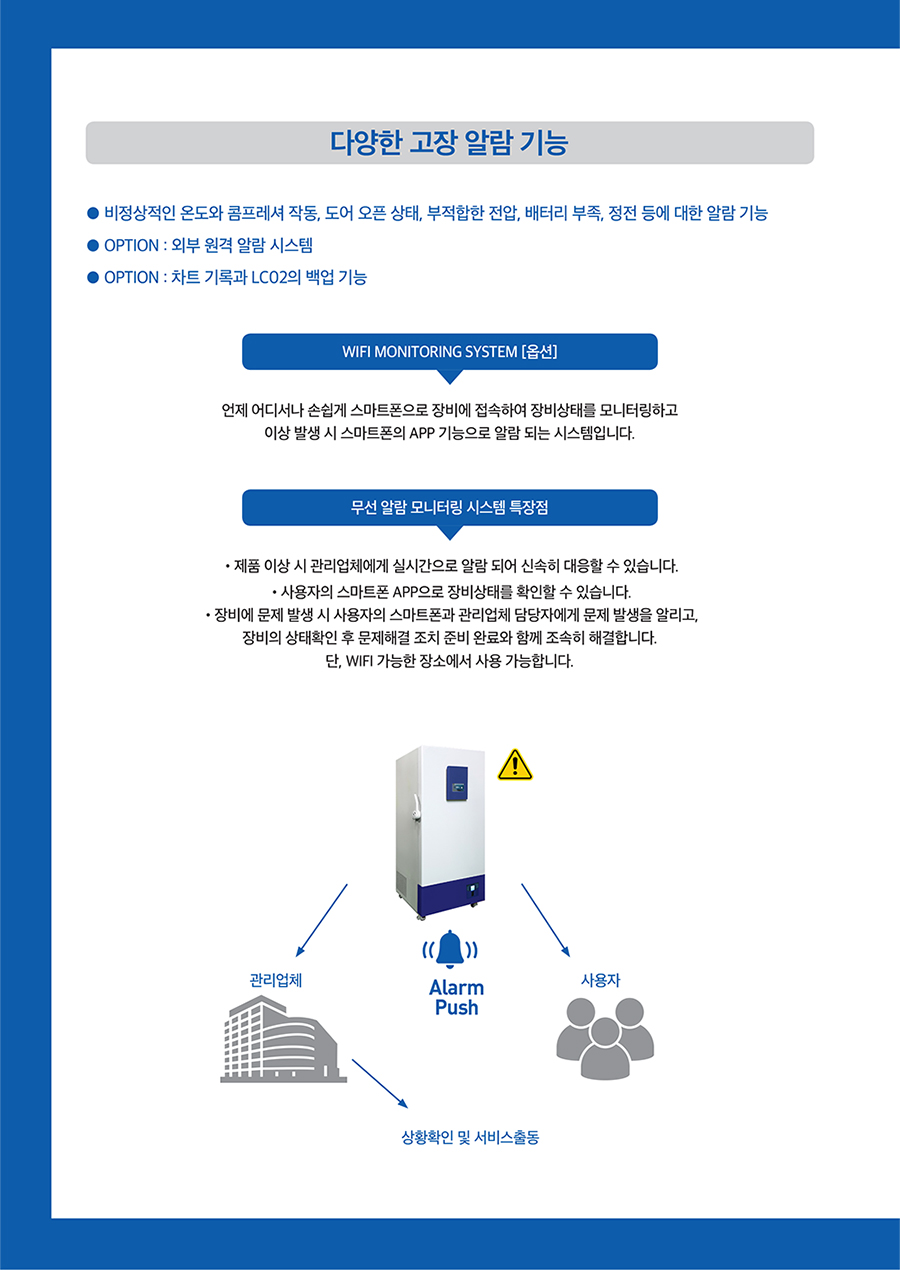

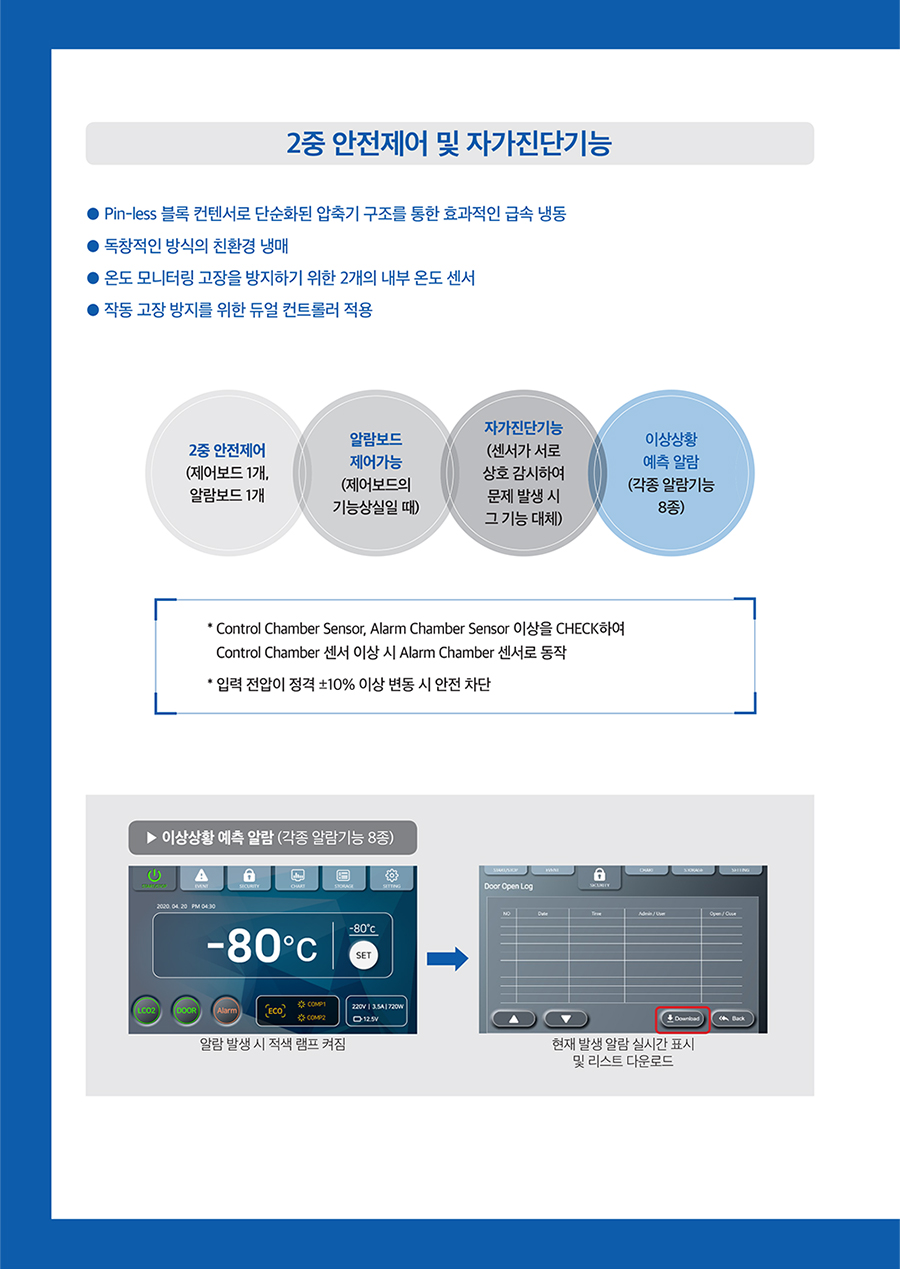

| Built in Standard Warning and Alarm Functions |
Chamber
Deimension
(WxDxH mm) |
Internal |
600x655x1,310 |
880x635x1,310 |
880x760x1,310 |
| External |
930x924x1,990 |
1,210x904x1,990 |
1,210x1,029x1,990 |
| Net Weight |
285kg |
325kg |
385kg |
| Power Consumption |
15A |
15A |
15A |
| PowerSupply & Cord plug |
1 Phase, AC 220V, 60Hz |
