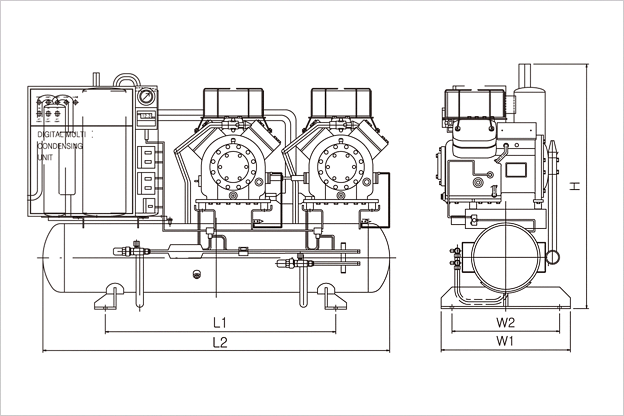

图纸 & 规格
| Model | Unit | CMG1002L | |
| Nominal output | HP | 10 | |
| Refrigeration ton | RT | 5.2 | |
| Power | 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +35 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | C-L37M9H2 | ||
| Rated output | Kw | 3.72 | |
| Displacement | /h | 45.1 + 45.1 | |
| Rated ampere | Amp | 7+ 7 | |
| Receiver tank | 50 | ||
| Accumulator | 6.5 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ⵿CONDENSER,ڴ | ||
| Connection tube | Suction line | 34.93 | |
| Displacement | |||
| Liquid line | 15.88 | ||
| Ext. dimension | L1/L2 | 1050 / 1425 | |
| W2/W1 | 600/500 | ||
| H | 1052 | ||
| Weight | Kg | 256 | |
| Model | Unit | CMG1252L | |
| Nominal output | HP | 12.5 | |
| Refrigeration ton | RT | 6.2 | |
| Power | 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +35 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | C-L37M9H/ C-L55M9D | ||
| Rated output | Kw | 3.7+5.5 | |
| Displacement | /h | 45.1+ 63.1 | |
| Rated ampere | Amp | 7+11 | |
| Receiver tank | 50 | ||
| Accumulator | 6.5 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ⵿CONDENSER,ڴ | ||
| Connection tube | Suction line | 41.28 | |
| Displacement | |||
| Liquid line | 15.88 | ||
| Ext. dimension | L1/L2 | 1050 / 1425 | |
| W2/W1 | 600/500 | ||
| H | 1052 | ||
| Weight | Kg | 286 | |
| Model | Unit | CMG1502L | |
| Nominal output | HP | 15 | |
| Refrigeration ton | RT | 7.2 | |
| Power | 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +35 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | C-L55M9D2 | ||
| Rated output | Kw | 5.52 | |
| Displacement | /h | 63.12 | |
| Rated ampere | Amp | 11+11 | |
| Receiver tank | 50 | ||
| Accumulator | 6.5 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ⵿CONDENSER,ڴ | ||
| Connection tube | Suction line | 41.28 | |
| Displacement | |||
| Liquid line | 15.88 | ||
| Ext. dimension | L1/L2 | 1050 / 1425 | |
| W2/W1 | 600/500 | ||
| H | 1052 | ||
| Weight | Kg | 316 | |
| Model | Unit | CMG2002L | |
| Nominal output | HP | 20 | |
| Refrigeration ton | RT | 11.2 | |
| Power | 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +35 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | C-L75M9I2 | ||
| Rated output | Kw | 7.52 | |
| Displacement | /h | 98.12 | |
| Rated ampere | Amp | 14.5+14.5 | |
| Receiver tank | 110 | ||
| Accumulator | 19 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ⵿CONDENSER,ڴ | ||
| Connection tube | Suction line | 53.98 | |
| Displacement | |||
| Liquid line | 22.23 | ||
| Ext. dimension | L1/L2 | 1053 / 1610 | |
| W2/W1 | 600/500 | ||
| H | 1140 | ||
| Weight | Kg | 500 | |
| Model | Unit | CMG2502L | |
| Nominal output | HP | 25 | |
| Refrigeration ton | RT | 13.1 | |
| Power | 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +35 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | C-L75M9I/ C-L113M9I | ||
| Rated output | Kw | 7.5+11 | |
| Displacement | /h | 98.1+130.5 | |
| Rated ampere | Amp | 14.5+20.5 | |
| Receiver tank | 110 | ||
| Accumulator | 19 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ⵿CONDENSER,ڴ | ||
| Connection tube | Suction line | 53.98 | |
| Displacement | |||
| Liquid line | 22.23 | ||
| Ext. dimension | L1/L2 | 1053 / 1610 | |
| W2/W1 | 600/500 | ||
| H | 1140 | ||
| Weight | Kg | 510 | |
| Model | Unit | CMG3002L | |
| Nominal output | HP | 30 | |
| Refrigeration ton | RT | 14.9 | |
| Power | 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +35 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | C-L113M9I2 | ||
| Rated output | Kw | 112 | |
| Displacement | /h | 130.52 | |
| Rated ampere | Amp | 20.5+20.5 | |
| Receiver tank | 110 | ||
| Accumulator | 19 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ⵿CONDENSER,ڴ | ||
| Connection tube | Suction line | 53.98 | |
| Displacement | |||
| Liquid line | 22.23 | ||
| Ext. dimension | L1/L2 | 1053 / 1610 | |
| W2/W1 | 600/500 | ||
| H | 1140 | ||
| Weight | Kg | 520 | |
| Model | Unit | CMG3502L | |
| Nominal output | HP | 35 | |
| Refrigeration ton | RT | 17.9 | |
| Power | 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +35 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | C-L113M9I/ C-L150M9I | ||
| Rated output | Kw | 11+15 | |
| Displacement | /h | 130.5+182.5 | |
| Rated ampere | Amp | 20.5+30.5 | |
| Receiver tank | 110 | ||
| Accumulator | 19 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ⵿CONDENSER,ڴ | ||
| Connection tube | Suction line | 53.98 | |
| Displacement | |||
| Liquid line | 22.23 | ||
| Ext. dimension | L1/L2 | 1053 / 1610 | |
| W2/W1 | 600/500 | ||
| H | 1140 | ||
| Weight | Kg | 565 | |
