图纸 & 规格
| Model | Unit | CPJ050SM | |
| Nominal output | HP | 5 | |
| Refrigeration ton | RT | ||
| Power | 3, 220V / 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | LA4K-0500 | ||
| Rated output | Kw | ||
| Displacement | /h | ||
| Rated ampere | Amp | 21.7/ 12.5 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 37.4 | ||
| Air volume | /min | 100 | |
| Fan diameter | 4002EA | ||
| Motor output | Kw | 0.1KW 2 | |
| Receiver tank | 6.5 | ||
| Accumulator | 3.4 | ||
| Safety equipment | DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ڴ | ||
| Connection tube | Suction line | 28.58 | |
| Displacement | |||
| Liquid line | 12.7 | ||

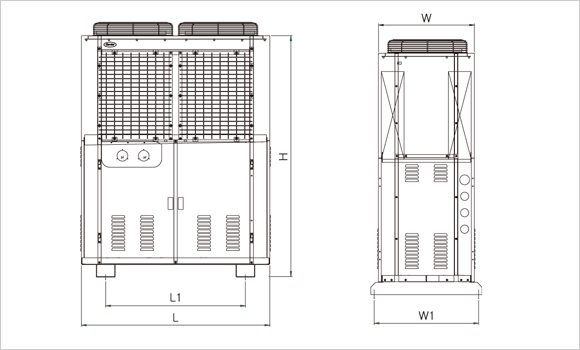

| Ext. dimension | L1/L2 | 1160/850 | |
| W1/W2 | 585/638 | ||
| H | 1475 | ||
| Weight | Kg | 250 | |
| Model | Unit | CPJ075SM | |
| Nominal output | HP | 7.5 | |
| Refrigeration ton | RT | ||
| Power | 3, 220V / 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | CAK-0750 | ||
| Rated output | Kw | 5.5 | |
| Displacement | /h | ||
| Rated ampere | Amp | 31.9/ 18.4 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 50 | ||
| Air volume | /min | 180 | |
| Fan diameter | 5002EA | ||
| Motor output | Kw | 0.3KW 2 | |
| Receiver tank | 8.7 | ||
| Accumulator | 3.8 | ||
| Safety equipment | DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ڴ | ||
| Connection tube | Suction line | 34.93 | |
| Displacement | |||
| Liquid line | 15.88 | ||
| Ext. dimension | L1/L2 | 1345/1045 | |
| W1/W2 | 688/738 | ||
| H | 1535 | ||
| Weight | Kg | 310 | |
| Model | Unit | CPJ100SM | |
| Nominal output | HP | 10 | |
| Refrigeration ton | RT | ||
| Power | 3, 220V / 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | 3SCH-1000 | ||
| Rated output | Kw | 7.5 | |
| Displacement | /h | ||
| Rated ampere | Amp | 48/ 26.5 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 75 | ||
| Air volume | /min | 200 | |
| Fan diameter | 5002EA | ||
| Motor output | Kw | 0.3KW 2 | |
| Receiver tank | 12 | ||
| Accumulator | 5.8 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ڴ | ||
| Connection tube | Suction line | 34.93 | |
| Displacement | |||
| Liquid line | 15.88 | ||
| Ext. dimension | L1/L2 | 1345/1045 | |
| W1/W2 | 728/778 | ||
| H | 1535 | ||
| Weight | Kg | 360 | |
| Model | Unit | CPJ150SM | |
| Nominal output | HP | 15 | |
| Refrigeration ton | RT | ||
| Power | 3, 220V / 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | 3SSH-1500 | ||
| Rated output | Kw | 11 | |
| Displacement | /h | ||
| Rated ampere | Amp | 71/ 39.5 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 112.5 | ||
| Air volume | /min | 300 | |
| Fan diameter | 6002EA | ||
| Motor output | Kw | 0.5KW 2 | |
| Receiver tank | 26 | ||
| Accumulator | 13 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ڴ | ||
| Connection tube | Suction line | 41.28 | |
| Displacement | |||
| Liquid line | 22.22 | ||
| Ext. dimension | L1/L2 | 1620/1320 | |
| W1/W2 | 828/878 | ||
| H | 1735 | ||
| Weight | Kg | 570 | |
| Model | Unit | CPJ200SM | |
| Nominal output | HP | 20 | |
| Refrigeration ton | RT | ||
| Power | 3, 220V / 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | 4SAH-2000 | ||
| Rated output | Kw | 15 | |
| Displacement | /h | ||
| Rated ampere | Amp | 84.5/ 47 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 149.5 | ||
| Air volume | /min | 400 | |
| Fan diameter | 7002EA | ||
| Motor output | Kw | 0.6KW 2 | |
| Receiver tank | 26 | ||
| Accumulator | 13 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ڴ | ||
| Connection tube | Suction line | 41.28 | |
| Displacement | |||
| Liquid line | 22.22 | ||
| Ext. dimension | L1/L2 | 1810/1510 | |
| W1/W2 | 928/978 | ||
| H | 1835 | ||
| Weight | Kg | 600 | |
| Model | Unit | CPJ250SM | |
| Nominal output | HP | 25 | |
| Refrigeration ton | RT | ||
| Power | 3, 220V / 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | 4SHH-2500 | ||
| Rated output | Kw | 18.5 | |
| Displacement | /h | ||
| Rated ampere | Amp | 103/ 57 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 187.4 | ||
| Air volume | /min | 450 | |
| Fan diameter | 6003EA | ||
| Motor output | Kw | 0.5KW 3 | |
| Receiver tank | 41 | ||
| Accumulator | 23 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ڴ | ||
| Connection tube | Suction line | 53.98 | |
| Displacement | |||
| Liquid line | 22.22 | ||
| Ext. dimension | L1/L2 | 2255/1955 | |
| W1/W2 | 928/978 | ||
| H | 1835 | ||
| Weight | Kg | 750 | |
| Model | Unit | CPJ300SM | |
| Nominal output | HP | 30 | |
| Refrigeration ton | RT | ||
| Power | 3, 220V / 380V, 60Hz | ||
| Refrigerant, ET | R22, -5 ~ -40 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | ݹ պ(Semi-hermetic Reciprocating) | |
| Model | 4SJH-3000 | ||
| Rated output | Kw | 22 | |
| Displacement | /h | ||
| Rated ampere | Amp | 121/ 67.5 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 224.8 | ||
| Air volume | /min | 600 | |
| Fan diameter | 7003EA | ||
| Motor output | Kw | 0.6KW 3 | |
| Receiver tank | 41 | ||
| Accumulator | 23 | ||
| Safety equipment | DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75) | ||
| Inner parts | STOP VALVE, FILTER DRIER, SIGHT GLASS | ||
| Control panel parts | ڰ, , , , ڴ | ||
| Connection tube | Suction line | 53.98 | |
| Displacement | |||
| Liquid line | 22.22 | ||
| Ext. dimension | L1/L2 | 2645/2345 | |
| W1/W2 | 928/978 | ||
| H | 1835 | ||
| Weight | Kg | 820 | |
