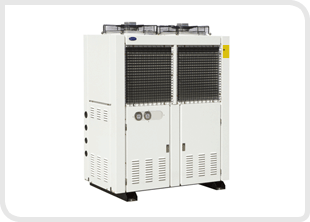

半密封式空冷CDU CPB

主页 > CDUs 制冷单元 > 半密封式空冷CDU CPB




  图纸 & 规格

Model Unit CPB050SM
Nominal output HP 5
Refrigeration ton RT 2.56
Power 3, 220V / 380V, 60Hz
Refrigerant, ET R22, +12.5 ~ -30
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model 4FC - 5.2 - 20D
Rated output Kw 4
Displacement /h 21.78
Rated ampere Amp 21.7/ 12.5
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 37.4
Air volume /min 100
Fan diameter 4002EA
Motor output Kw 0.1KW 2
Receiver tank 6.5
Accumulator 3.4
Safety equipment DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 28.58
Displacement
Liquid line 12.7

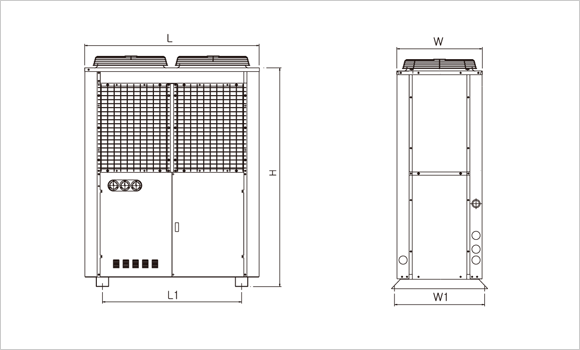

Ext. dimension L1/L2 1160/850
W1/W2 585/638
H 1475
Weight Kg 250
Model Unit CPB075SM
Nominal output HP 7.5
Refrigeration ton RT 3.81
Power 3, 220V / 380V, 60Hz
Refrigerant, ET R22, +12.5 ~ -30
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model 4DC - 7.2 - 20D
Rated output Kw 5.5
Displacement /h 32.39
Rated ampere Amp 31.9/ 18.4
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 50
Air volume /min 180
Fan diameter 5002EA
Motor output Kw 0.3KW 2
Receiver tank 8.7
Accumulator 3.8
Safety equipment DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 34.93
Displacement
Liquid line 15.88
Ext. dimension L1/L2 1345/1045
W1/W2 688/738
H 1535
Weight Kg 310
Model Unit CPB100SM
Nominal output HP 10
Refrigeration ton RT 4.69
Power 3, 220V / 380V, 60Hz
Refrigerant, ET R22, +12.5 ~ -30
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model 4V - 10.2 - 20D
Rated output Kw 7.5
Displacement /h 39.91
Rated ampere Amp 48/ 26.5
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 75
Air volume /min 200
Fan diameter 5002EA
Motor output Kw 0.3KW 2
Receiver tank 12
Accumulator 5.8
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 34.93
Displacement
Liquid line 15.88
Ext. dimension L1/L2 1345/1045
W1/W2 728/778
H 1535
Weight Kg 360
Model Unit CPB150SM
Nominal output HP 15
Refrigeration ton RT 6.69
Power 3, 220V / 380V, 60Hz
Refrigerant, ET R22, +12.5 ~ -30
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model 4P - 15.2 - 20D
Rated output Kw 11
Displacement /h 56.89
Rated ampere Amp 71/ 39.5
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 112.5
Air volume /min 300
Fan diameter 6002EA
Motor output Kw 0.5KW 2
Receiver tank 26
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 41.28
Displacement
Liquid line 22.22
Ext. dimension L1/L2 1620/1320
W1/W2 828/878
H 1735
Weight Kg 570
Model Unit CPB200SM
Nominal output HP 20
Refrigeration ton RT 7.96
Power 3, 220V / 380V, 60Hz
Refrigerant, ET R22, +12.5 ~ -30
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model 4N - 20.2 - 20D
Rated output Kw 15
Displacement /h 67.71
Rated ampere Amp 84.5/ 47
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 149.5
Air volume /min 400
Fan diameter 7002EA
Motor output Kw 0.6KW 2
Receiver tank 26
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 41.28
Displacement
Liquid line 22.22
Ext. dimension L1/L2 1810/1510
W1/W2 928/978
H 1835
Weight Kg 600
Model Unit CPB250SM
Nominal output HP 25
Refrigeration ton RT 10.45
Power 3, 220V / 380V, 60Hz
Refrigerant, ET R22, +12.5 ~ -30
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model 4H - 25.2 - 20D
Rated output Kw 18.5
Displacement /h 88.83
Rated ampere Amp 103/ 57
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 187.4
Air volume /min 450
Fan diameter 6003EA
Motor output Kw 0.5KW 3
Receiver tank 41
Accumulator 23
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 22.22
Ext. dimension L1/L2 2255/1955
W1/W2 928/978
H 1835
Weight Kg 750
Model Unit CPB300SM
Nominal output HP 30
Refrigeration ton RT 11.99
Power 3, 220V / 380V, 60Hz
Refrigerant, ET R22, +12.5 ~ -30
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model 4G - 30.2 - 20D
Rated output Kw 22
Displacement /h 101.98
Rated ampere Amp 121/ 67.5
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 224.8
Air volume /min 600
Fan diameter 7003EA
Motor output Kw 0.6KW 3
Receiver tank 41
Accumulator 23
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 22.22
Ext. dimension L1/L2 2645/2345
W1/W2 928/978
H 1835
Weight Kg 820
