| 主页 > CDUs 制冷单元 > 密封制冷CDU |
 |
|
||||||||
| |||||||||

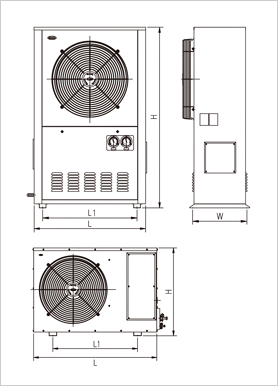

图纸 & 规格
| Model | Unit | CIH020SM | |
| Nominal output | HP | 2 | |
| Refrigeration ton | RT | 1.01 | |
| Power | 1, 220V, 60Hz / 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, +10 ~ -23 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | պ (Hermetic Reciprocating) | |
| Model | CR24KQ - PFV / TFD | ||
| Rated output | Kw | 1.5 | |
| Displacement | /h | 8.62 | |
| Rated ampere | Amp | 13.4/4.2 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 20.5 | ||
| Air volume | /min | 53 | |
| Fan diameter | 400 | ||
| Motor output | Kw | 0.1 | |
| Refrigeration Oil | Model | 2.4 | |
| Oil charge | NONE | ||
| Receiver tank | DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT, | ||
| Accumulator | STOP VALVE(װ, ), FILTER DRIER, SIGHT GLASS | ||
| Safety equipment | ڰ, , , , ڴ | ||
| Inner parts | 15.88 | ||
| Control panel parts | |||
| Connection tube | Suction line | 9.52 | |
| Displacement | 952 | ||
| Liquid line | 488 | ||
| Ext. dimension | L | 679 | |
| W | 89 | ||
| H | |||
| Weight | Kg | ||
| Model | Unit | CIH030SM | |
| Nominal output | HP | 3 | |
| Refrigeration ton | RT | 1.69 | |
| Power | 1, 220V, 60Hz / 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, +10 ~ -23 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | պ (Hermetic Reciprocating) | |
| Model | CR37KQ - PFV / TFD | ||
| Rated output | Kw | 2.2 | |
| Displacement | /h | 14.37 | |
| Rated ampere | Amp | 18.5/5.6 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 27.3 | ||
| Air volume | /min | 73 | |
| Fan diameter | 450 | ||
| Motor output | Kw | 0.1 | |
| Refrigeration Oil | Model | 2.4 | |
| Oil charge | NONE | ||
| Receiver tank | DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT, | ||
| Accumulator | STOP VALVE(װ, ), FILTER DRIER, SIGHT GLASS | ||
| Safety equipment | ڰ, , , , ڴ | ||
| Inner parts | 15.88 | ||
| Control panel parts | |||
| Connection tube | Suction line | 9.52 | |
| Displacement | 952 | ||
| Liquid line | 488 | ||
| Ext. dimension | L | 679 | |
| W | 92 | ||
| H | |||
| Weight | Kg | ||
| Model | Unit | CIH040SM | |
| Nominal output | HP | 4 | |
| Refrigeration ton | RT | 2 | |
| Power | 1, 220V, 60Hz / 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, +10 ~ -23 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | պ (Hermetic Reciprocating) | |
| Model | CR47KQ - PFV / TFD | ||
| Rated output | Kw | 3 | |
| Displacement | /h | 17.05 | |
| Rated ampere | Amp | 25/8.2 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 39.2 | ||
| Air volume | /min | 93 | |
| Fan diameter | 500 | ||
| Motor output | Kw | 0.25 | |
| Refrigeration Oil | Model | 6.5 | |
| Oil charge | NONE | ||
| Receiver tank | DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT, | ||
| Accumulator | STOP VALVE(װ, ), FILTER DRIER, SIGHT GLASS | ||
| Safety equipment | ڰ, , , , ڴ | ||
| Inner parts | 19.05 | ||
| Control panel parts | |||
| Connection tube | Suction line | 12.70 | |
| Displacement | 1100 | ||
| Liquid line | 472 | ||
| Ext. dimension | L | 870 | |
| W | 110 | ||
| H | |||
| Weight | Kg | ||
| Model | Unit | CIH050SM | |
| Nominal output | HP | 5 | |
| Refrigeration ton | RT | 2.52 | |
| Power | 1, 220V, 60Hz / 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, +10 ~ -23 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | պ (Hermetic Reciprocating) | |
| Model | CRNQ - 0500 - PFV / TFD | ||
| Rated output | Kw | 3.7 | |
| Displacement | /h | 21.42 | |
| Rated ampere | Amp | 34.3 / 9.5 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 46.8 | ||
| Air volume | /min | 93 | |
| Fan diameter | 500 | ||
| Motor output | Kw | 0.25 | |
| Refrigeration Oil | Model | 6.5 | |
| Oil charge | NONE | ||
| Receiver tank | DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT, | ||
| Accumulator | STOP VALVE(װ), FILTER DRIER, SIGHT GLASS, CRANKCASE HEATER | ||
| Safety equipment | ڰ, , , , ڴ | ||
| Inner parts | 22.23 | ||
| Control panel parts | |||
| Connection tube | Suction line | 12.70 | |
| Displacement | 800 | ||
| Liquid line | 460 | ||
| Ext. dimension | L | 1510 | |
| W | 135 | ||
| H | |||
| Weight | Kg | ||
