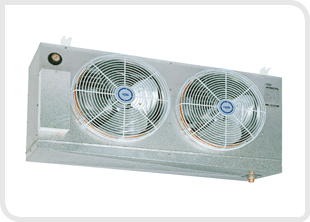

Unit cooler CUD

主页 > CDUs 制冷单元 > Unit cooler CUD




  图纸 & 规格

Model Unit CUD008E*B
HP HP 2
Spec. F L
Room temp. +10~ -10 -20~ -30
Fin pitch 6.5 8.5
Heat transfer area 7.3 5.7
kcal/h TD(5) kcal/h 803 627
TD(7) kcal/h 1226 958
TD(10) kcal/h 2044 1710
Fan diameter 350 350
Fan & Motor Phase 1 3
Kilowatt Kw 0.1 0.1
Pole P 4 4
Quantity 1 1
Air volume /min 33 33
Defrost heater Body Kw 0.35*4EA 0.35*4EA
Drain Pan Kw 0.55*1EA 0.55*1EA
Fan Guide Kw 0.2*1EA
Connection tube Inlet 12.7 12.7
 Outlet 19.05 19.05
Drain A 25 25

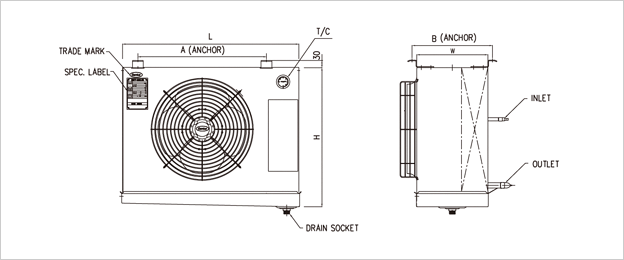

Ext.dimension L W H 735*300*575 735*300*575
C D (EF) 535*340 535*340
Mounting size A B
Weight Kg 30 30
Model Unit CUD011E*B
HP HP 3
Spec. F L
Room temp. +10~ -10 -20~ -30
Fin pitch 6.5 8.5
Heat transfer area 9.7 7.7
kcal/h TD(5) kcal/h 1067 847
TD(7) kcal/h 1630 1294
TD(10) kcal/h 2716 2310
Fan diameter 400 400
Fan & Motor Phase 1 3
Kilowatt Kw 0.1 0.1
Pole P 6 6
Quantity 1 1
Air volume /min 48 48
Defrost heater Body Kw 0.35*4EA 0.35*4EA
Drain Pan Kw 0.55*1EA 0.55*1EA
Fan Guide Kw 0.2*1EA
Connection tube Inlet 12.7 12.7
 Outlet 22.22 22.22
Drain A 25 25
Ext.dimension L W H 735*300*575 735*300*575
C D (EF) 535*340 535*340
Mounting size A B
Weight Kg 30 30
Model Unit CUD015E*B
HP HP 4
Spec. F L
Room temp. +10~ -10 -20~ -30
Fin pitch 6.5 8.5
Heat transfer area 13.7 10.9
kcal/h TD(5) kcal/h 1507 1199
TD(7) kcal/h 2302 1831
TD(10) kcal/h 3836 3270
Fan diameter 400 400
Fan & Motor Phase 1 3
Kilowatt Kw 0.1 0.1
Pole P 6 6
Quantity 1 1
Air volume /min 48 48
Defrost heater Body Kw 0.5*4EA 0.5*4EA
Drain Pan Kw 0.7*1EA 0.7*1EA
Fan Guide Kw 0.27*1EA
Connection tube Inlet 12.7 12.7
 Outlet 22.22 22.22
Drain A 25 25
Ext.dimension L W H 950*300*575 950*300*575
C D (EF) 750*340 750*340
Mounting size A B
Weight Kg 38 38
Model Unit CUD020E*B
HP HP 5
Spec. F L
Room temp. +10~ -10 -20~ -30
Fin pitch 6.5 8.5
Heat transfer area 17.9 14.1
kcal/h TD(5) kcal/h 1969 1551
TD(7) kcal/h 3007 2369
TD(10) kcal/h 5012 4230
Fan diameter 400 400
Fan & Motor Phase 1 3
Kilowatt Kw 0.1 0.1
Pole P 6 6
Quantity 2 2
Air volume /min 98 98
Defrost heater Body Kw 0.65*44EA 0.65*44EA
Drain Pan Kw 0.9*1EA 0.9*1EA
Fan Guide Kw 0.34*1EA
Connection tube Inlet 12.7 12.7
 Outlet 28.58 28.58
Drain A 25 25
Ext.dimension L W H 1170*300*575 1170*300*575
C D (EF) 970*340 970*340
Mounting size A B
Weight Kg 51 51
Model Unit CUD030E*B
HP HP 7.5
Spec. F L
Room temp. +10~ -10 -20~ -30
Fin pitch 6.5 8.5
Heat transfer area 29.9 23.7
kcal/h TD(5) kcal/h 3289 2607
TD(7) kcal/h 5023 3982
TD(10) kcal/h 8372 7110
Fan diameter 400 400
Fan & Motor Phase 3 3
Kilowatt Kw 0.1 0.1
Pole P 6 6
Quantity 2 2
Air volume /min 98 98
Defrost heater Body Kw 0.7*8EA 0.7*8EA
Drain Pan Kw 0.95*1EA 0.95*1EA
Fan Guide Kw 0.37*1EA
Connection tube Inlet 15.88 15.88
 Outlet 34.92 34.92
Drain A 25 25
Ext.dimension L W H 1260*375*612 1260*375*612
C D (EF) 1060*415 1060*415
Mounting size A B
Weight Kg 65 65
Model Unit CUD044E*B
HP HP 10
Spec. F L
Room temp. +10~ -10 -20~ -30
Fin pitch 6.5 8.5
Heat transfer area 37.8 39.9
kcal/h TD(5) kcal/h 4158 3289
TD(7) kcal/h 6350 5023
TD(10) kcal/h 10584 8970
Fan diameter 450 450
Fan & Motor Phase 3 3
Kilowatt Kw 0.2 0.2
Pole P 6 6
Quantity 2 2
Air volume /min 135 135
Defrost heater Body Kw 0.8*8EA 0.8*8EA
Drain Pan Kw 1.1*1EA 1.1*1EA
Fan Guide Kw 0.43*1EA
Connection tube Inlet 15.88 15.88
 Outlet 34.92 34.92
Drain A 25 25
Ext.dimension L W H 1410*375*644 1410*375*644
C D (EF) 1210*415 1210*415
Mounting size A B
Weight Kg 80 80
Model Unit CUD049E*B
HP HP 12
Spec. F L
Room temp. +10~ -10 -20~ -30
Fin pitch 6.5 8.5
Heat transfer area 41.9 33.2
kcal/h TD(5) kcal/h 4609 3652
TD(7) kcal/h 7039 5578
TD(10) kcal/h 11732 9960
Fan diameter 450 450
Fan & Motor Phase 3 3
Kilowatt Kw 0.2 0.2
Pole P 6 6
Quantity 2 2
Air volume /min 135 135
Defrost heater Body Kw 0.9*8EA 0.9*8EA
Drain Pan Kw 1.2*1EA 1.2*1EA
Fan Guide Kw 0.47*1EA
Connection tube Inlet 15.88 15.88
 Outlet 41.28 41.28
Drain A 25 25
Ext.dimension L W H 1540*375*644 1540*375*644
C D (EF) 1340*415 1340*415
Mounting size A B
Weight Kg 85 85
Model Unit CUD071E*B
HP HP 15
Spec. F L
Room temp. +10~ -10 -20~ -30
Fin pitch 6.5 8.5
Heat transfer area 61.3 48.5
kcal/h TD(5) kcal/h 6743 5335
TD(7) kcal/h 10298 8148
TD(10) kcal/h 17164 14550
Fan diameter 450 450
Fan & Motor Phase 3 3
Kilowatt Kw 0.2 0.2
Pole P 6 6
Quantity 3 3
Air volume /min 202 202
Defrost heater Body Kw 1.0*10EA 1.0*10EA
Drain Pan Kw 1.4*1EA 1.4*1EA
Fan Guide Kw 0.56*1EA
Connection tube Inlet 22.22 22.22
 Outlet 41.28 41.28
Drain A 25 25
Ext.dimension L W H 1800*375*771 1800*375*771
C D (EF) 1600*415 1600*415
Mounting size A B
Weight Kg 110 110
