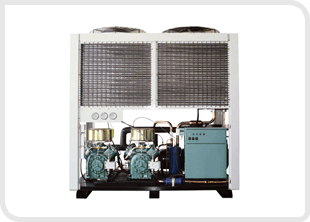

半密封式空冷CDU CPG

主页 > CDUs 制冷单元 > 半密封式空冷CDU CPG

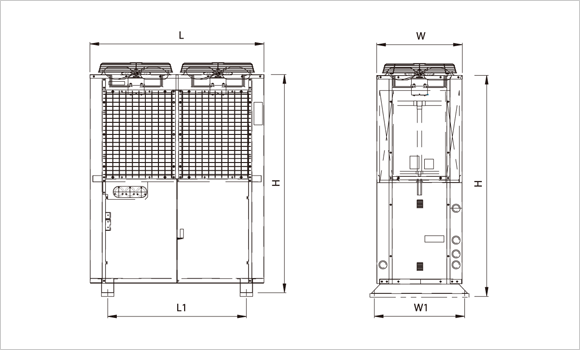

  图纸 & 规格

Model Unit CPG1002L
Nominal output HP 10
Refrigeration ton RT 4.7
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -20 / -25 ~ -40 ( )
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L37M9H2
Rated output Kw 3.72
Displacement /h 19.9*2
Rated ampere Amp 7+ 7
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 75
Air volume /min 200
Fan diameter 5002EA
Motor output Kw 0.3KW 2
Receiver tank 15
Accumulator 6
Safety equipment DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 34.93
Displacement
Liquid line 15.88
Ext. dimension L1/L2 1345/1045
W1/W2 728/778
H 1535
Weight Kg 479
Model Unit CPG1252L
Nominal output HP 12.5
Refrigeration ton RT 5.96
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -20 / -25 ~ -40 ( )
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L37M9H/ C-L55M9D
Rated output Kw 3.7+5.5
Displacement /h 19.9+30.7
Rated ampere Amp 7+11
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 112.5
Air volume /min 300
Fan diameter 6002EA
Motor output Kw 0.5KW 2
Receiver tank 23
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 41.28
Displacement
Liquid line 15.88
Ext. dimension L1/L2 1620/1320
W1/W2 828/878
H 1735
Weight Kg 593
Model Unit CPG1502L
Nominal output HP 15
Refrigeration ton RT 7.22
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -20 / -25 ~ -40 ( )
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L55M9D2
Rated output Kw 5.52
Displacement /h 30.7*2
Rated ampere Amp 11+11
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 112.5
Air volume /min 300
Fan diameter 6002EA
Motor output Kw 0.5KW 2
Receiver tank 23
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 41.28
Displacement
Liquid line 15.88
Ext. dimension L1/L2 1620/1320
W1/W2 828/878
H 1735
Weight Kg 601
Model Unit CPG2002L
Nominal output HP 20
Refrigeration ton RT 11.2
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -20 / -25 ~ -40 ( )
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L75M9I2
Rated output Kw 7.52
Displacement /h 47.7*2
Rated ampere Amp 14.5+14.5
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 149.5
Air volume /min 400
Fan diameter 7002EA
Motor output Kw 0.6KW 2
Receiver tank 36
Accumulator 23
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 22.22
Ext. dimension L1/L2 1810/1510
W1/W2 928/978
H 1835
Weight Kg 801
Model Unit CPG2502L
Nominal output HP 25
Refrigeration ton RT 13.06
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -20 / -25 ~ -40 ( )
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L75M9I/ C-L113M9I
Rated output Kw 7.5+11
Displacement /h 47.7+63.4
Rated ampere Amp 14.5+20.5
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 187.5
Air volume /min 450
Fan diameter 6003EA
Motor output Kw 0.5KW 3
Receiver tank 47
Accumulator 23
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 22.22
Ext. dimension L1/L2 2255/1955
W1/W2 928/978
H 1835
Weight Kg 859
Model Unit CPG3002L
Nominal output HP 30
Refrigeration ton RT 14.92
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -20 / -25 ~ -40 ( )
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L113M9I2
Rated output Kw 112
Displacement /h 63.4*2
Rated ampere Amp 20.5+20.5
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 224.8
Air volume /min 600
Fan diameter 7003EA
Motor output Kw 0.6KW 3
Receiver tank 47
Accumulator 23
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 22.22
Ext. dimension L1/L2 2645/2345
W1/W2 928/978
H 1835
Weight Kg 903
Model Unit CPG3502L
Nominal output HP 35
Refrigeration ton RT 17.86
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -20 / -25 ~ -40 ( )
Installment condition ǿܼġ, -15 ~ +40
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L113M9I/ C-L150M9I
Rated output Kw 11+15
Displacement /h 63.4+88.7
Rated ampere Amp 20.5+30.5
Condenser Type CORRUGATED FIN & CU TUBE
Heat transfer area 308.1
Air volume /min 600
Fan diameter 7003EA
Motor output Kw 0.6KW 3
Receiver tank 47
Accumulator 23
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 28.58
Ext. dimension L1/L2 3425/3125
W1/W2 928/978
H 1935
Weight Kg 993
