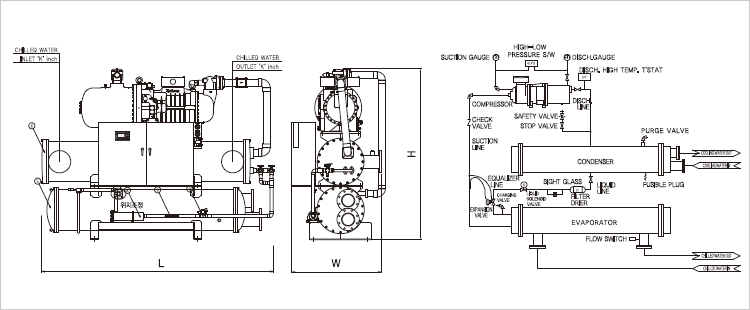

图纸 & 规格
| Model | Unit | CWW040SA-X3S | |
| Nominal output | HP | 40 | |
| Cooling capacity | kcl/h | 108400 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 2100 |
| Width | mm | 800 | |
| Height | mm | 1320 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-113 | ||
| Motor output | KW | 30 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 28.3 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 21.7 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 6 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 80 |
| Water tube | A | 80 | |
| Weight | Kg | 1200 | |
| Operating weight | Kg | 1400 | |
| Model | Unit | CWW050SA-X3S | |
| Nominal output | HP | 50 | |
| Cooling capacity | kcl/h | 138900 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 2100 |
| Width | mm | 850 | |
| Height | mm | 1440 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-133 | ||
| Motor output | KW | 37 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 36 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 27.8 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 6 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 80 |
| Water tube | A | 80 | |
| Weight | Kg | 1400 | |
| Operating weight | Kg | 1600 | |
| Model | Unit | CWW060SA-X3S | |
| Nominal output | HP | 60 | |
| Cooling capacity | kcl/h | 154800 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 2100 |
| Width | mm | 850 | |
| Height | mm | 1440 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-163 | ||
| Motor output | KW | 45 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 39.5 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 31 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 6 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 80 |
| Water tube | A | 100 | |
| Weight | Kg | 1600 | |
| Operating weight | Kg | 1800 | |
| Model | Unit | CWW070SA-X3S | |
| Nominal output | HP | 70 | |
| Cooling capacity | kcl/h | 179500 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 2150 |
| Width | mm | 930 | |
| Height | mm | 1650 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-183 | ||
| Motor output | KW | 52.5 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 45.8 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 35.9 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 7 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 100 |
| Water tube | A | 100 | |
| Weight | Kg | 2000 | |
| Operating weight | Kg | 2300 | |
| Model | Unit | CWW080SA-X3S | |
| Nominal output | HP | 80 | |
| Cooling capacity | kcl/h | 207500 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 2150 |
| Width | mm | 930 | |
| Height | mm | 1650 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-213 | ||
| Motor output | KW | 60 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 52.9 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 41.5 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 7 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 100 |
| Water tube | A | 100 | |
| Weight | Kg | 2200 | |
| Operating weight | Kg | 2500 | |
| Model | Unit | CWW100SA-X3S | |
| Nominal output | HP | 100 | |
| Cooling capacity | kcl/h | 255100 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 2450 |
| Width | mm | 1080 | |
| Height | mm | 1750 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-255 | ||
| Motor output | KW | 75 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 64.7 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 51 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 10 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 100 |
| Water tube | A | 100 | |
| Weight | Kg | 2400 | |
| Operating weight | Kg | 2700 | |
| Model | Unit | CWW120SA-X3S | |
| Nominal output | HP | 120 | |
| Cooling capacity | kcl/h | 307300 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 2450 |
| Width | mm | 1130 | |
| Height | mm | 1850 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-305 | ||
| Motor output | KW | 90 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 78 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 61.5 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 10 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 100 |
| Water tube | A | 125 | |
| Weight | Kg | 2800 | |
| Operating weight | Kg | 3200 | |
| Model | Unit | CWW140SA-X3S | |
| Nominal output | HP | 140 | |
| Cooling capacity | kcl/h | 366100 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3000 |
| Width | mm | 1200 | |
| Height | mm | 1960 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-353 | ||
| Motor output | KW | 105 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 92.6 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 73.2 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 14 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 125 |
| Water tube | A | 125 | |
| Weight | Kg | 3200 | |
| Operating weight | Kg | 3600 | |
| Model | Unit | CWW160SA-X3S | |
| Nominal output | HP | 160 | |
| Cooling capacity | kcl/h | 409100 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3000 |
| Width | mm | 1200 | |
| Height | mm | 2060 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-413 | ||
| Motor output | KW | 120 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 103.3 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 81.8 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 14 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 125 |
| Water tube | A | 125 | |
| Weight | Kg | 3400 | |
| Operating weight | Kg | 3800 | |
| Model | Unit | CWW180SA-X3S | |
| Nominal output | HP | 180 | |
| Cooling capacity | kcl/h | 454400 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3000 |
| Width | mm | 1200 | |
| Height | mm | 2060 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-463 | ||
| Motor output | KW | 135 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 114.9 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 90.9 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 16 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 125 |
| Water tube | A | 125 | |
| Weight | Kg | 3600 | |
| Operating weight | Kg | 4000 | |
| Model | Unit | CWW200SA-X3S | |
| Nominal output | HP | 200 | |
| Cooling capacity | kcl/h | 500700 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3000 |
| Width | mm | 1200 | |
| Height | mm | 2160 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-503 | ||
| Motor output | KW | 150 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 126.1 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 100.1 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 19 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 150 |
| Water tube | A | 150 | |
| Weight | Kg | 4100 | |
| Operating weight | Kg | 4600 | |
| Model | Unit | CWW220SA-X3S | |
| Nominal output | HP | 220 | |
| Cooling capacity | kcl/h | 534600 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3250 |
| Width | mm | 1200 | |
| Height | mm | 2160 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-553 | ||
| Motor output | KW | 165 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 134.6 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 106.9 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 19 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 150 |
| Water tube | A | 150 | |
| Weight | Kg | 4300 | |
| Operating weight | Kg | 5000 | |
| Model | Unit | CWW240SA-X3S | |
| Nominal output | HP | 240 | |
| Cooling capacity | kcl/h | 637900 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3250 |
| Width | mm | 1250 | |
| Height | mm | 2200 | |
| Compressor | Type | Semi-Hermetic, Screw Type | |
| Model | SRC-S-603 | ||
| Motor output | KW | 180 | |
| Locked rotor type | Y | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | 32 / 37 | ||
| Cooling water volume | /h | 162.4 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | 12 / 7 | ||
| Water volume | /h | 127.6 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | 20 | ||
| Volume control | % | 50%~100% (Ǵ 25%,50%,75%,100% 4:ɼ) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | .з½ġ, , Ͱ(EPM), , µ,µ,÷ο ġ | ||
| Connection tube | Cooling water tube | A | 150 |
| Water tube | A | 200 | |
| Weight | Kg | 4500 | |
| Operating weight | Kg | 5300 | |
