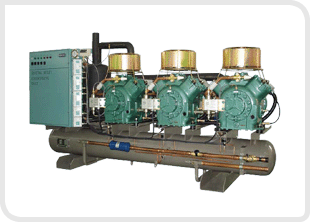

3机联合

主页 > CDUs 制冷单元 > 3机联合




  图纸 & 规格

Model Unit CCG1503
Nominal output HP 15
Refrigeration ton RT 7.8
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -40
Installment condition ǿܼġ, -15 ~ +35
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L37M9H3
Rated output Kw 3.73
Displacement /h 45.13
Rated ampere Amp 7+7+7
Receiver tank 53
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ⵿CONDENSER,ڴ
Connection tube Suction line 41.28
Displacement
Liquid line 22.23

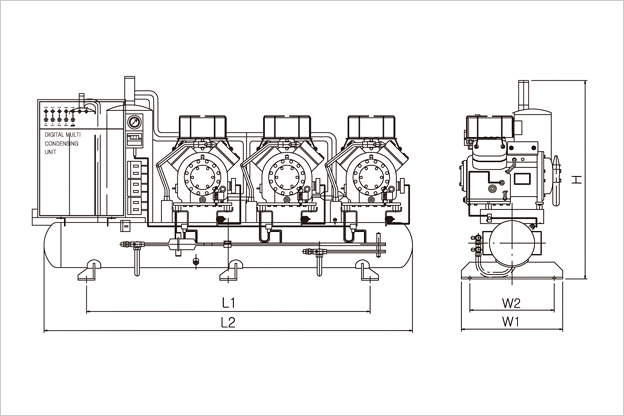

Ext. dimension L1/L2 1470 / 1842
W2/W1 600/500
H 1032
Weight Kg 366
Model Unit CCG1753
Nominal output HP 17.5
Refrigeration ton RT 8.8
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -40
Installment condition ǿܼġ, -15 ~ +35
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L37M9H2/ C-L55M9D
Rated output Kw 3.72+5.5
Displacement /h 45.1+45.1+63.1
Rated ampere Amp 7+7+11
Receiver tank 53
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ⵿CONDENSER,ڴ
Connection tube Suction line 41.28
Displacement
Liquid line 22.23
Ext. dimension L1/L2 1470 / 1842
W2/W1 600/500
H 1032
Weight Kg 396
Model Unit CCG2003
Nominal output HP 20
Refrigeration ton RT 9.8
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -40
Installment condition ǿܼġ, -15 ~ +35
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L37M9H/ C-L55M9D2
Rated output Kw 3.7+5.52
Displacement /h 45.1+63.1+63.1
Rated ampere Amp 7+11+11
Receiver tank 53
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ⵿CONDENSER,ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 22.23
Ext. dimension L1/L2 1470 / 1842
W2/W1 600/500
H 1032
Weight Kg 456
Model Unit CCG2253
Nominal output HP 22.5
Refrigeration ton RT 10.8
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -40
Installment condition ǿܼġ, -15 ~ +35
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L55M9D3
Rated output Kw 5.53
Displacement /h 63.13
Rated ampere Amp 11+11+11
Receiver tank 53
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ⵿CONDENSER,ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 22.23
Ext. dimension L1/L2 1470 / 1842
W2/W1 600/500
H 1032
Weight Kg 612
Model Unit CCG2503
Nominal output HP 25
Refrigeration ton RT 12.8
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -40
Installment condition ǿܼġ, -15 ~ +35
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L55M9D2/ C-L75M9I
Rated output Kw 5.52+7.5
Displacement /h 63.1+63.1+98.1
Rated ampere Amp 11+11+14.5
Receiver tank 53
Accumulator 13
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ⵿CONDENSER,ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 22.23
Ext. dimension L1/L2 1470 / 2193
W2/W1 600/500
H 1165
Weight Kg 630
Model Unit CCG3003
Nominal output HP 30
Refrigeration ton RT 16.8
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -40
Installment condition ǿܼġ, -15 ~ +35
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L75M9I3
Rated output Kw 7.53
Displacement /h 98.13
Rated ampere Amp 14.5+14.5+14.5
Receiver tank 110
Accumulator 23
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ⵿CONDENSER,ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 28.58
Ext. dimension L1/L2 1470 / 2193
W2/W1 600/500
H 1165
Weight Kg 652
Model Unit CCG3503
Nominal output HP 35
Refrigeration ton RT 18.7
Power 3, 380V, 60Hz
Refrigerant, ET R22, -5 ~ -40
Installment condition ǿܼġ, -15 ~ +35
Compressor Type ݹ պ(Semi-hermetic Reciprocating)
Model C-L75M9I2/ C-L113M9I
Rated output Kw 7.52+11
Displacement /h 98.1+98.1+130.5
Rated ampere Amp 14.5+14.5+20.5
Receiver tank 110
Accumulator 23
Safety equipment DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75)
Inner parts STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts ڰ, , , , ⵿CONDENSER,ڴ
Connection tube Suction line 53.98
Displacement
Liquid line 28.58
Ext. dimension L1/L2 1470 / 2193
W2/W1 600/500
H 1165
Weight Kg 662
