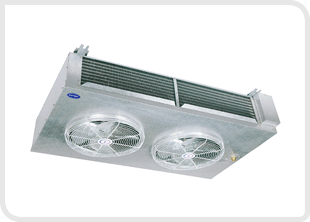

Unit cooler CUM

主页 > CDUs 制冷单元 > Unit cooler CUM

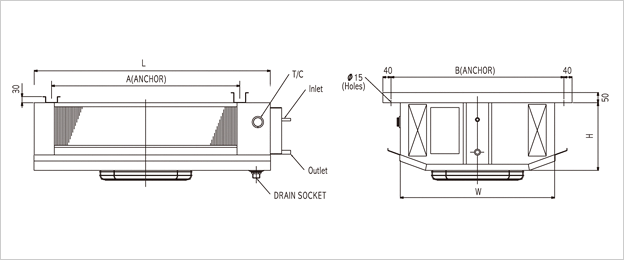

  图纸 & 规格

Model Unit CUM020**B
HP HP 2
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 13.2 13.2 9.6
kcal/h TD(5) kcal/h 1980 1650 863
TD(7) kcal/h 2772 2310 1208
TD(10) kcal/h 3960 3300 1726
Fan diameter 350 350 350
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.1 0.1 0.1
Pole P 6 6 6
Quantity 1 1 1
Air volume /min 33 33 33
Defrost heater Body Kw 0.4*4EA 0.4*4EA
Drain Pan Kw 0.8*2EA
Fan Guide Kw
Connection tube Inlet 12.7 12.7 12.7
 Outlet 22.22 22.22 22.22
Drain A 25 25 25
Ext.dimension L W H 860*750*332 860*750*332 860*750*332
C D (EF) 625*850 625*850 625*850
Mounting size A B
Weight Kg 58.6 58.6 58.6
Model Unit CUM030**B
HP HP 3
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 19.8 19.8 14.4
kcal/h TD(5) kcal/h 2970 2475 1296
TD(7) kcal/h 4158 3465 1814
TD(10) kcal/h 5940 4950 2592
Fan diameter 400 400 400
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.1 0.1 0.1
Pole P 6 6 6
Quantity 1 1 1
Air volume /min 50 50 50
Defrost heater Body Kw 0.6*4EA 0.6*4EA
Drain Pan Kw 1.0*2EA
Fan Guide Kw
Connection tube Inlet 12.7 12.7 12.7
 Outlet 22.22 22.22 22.22
Drain A 25 25 25
Ext.dimension L W H 1160*750*332 1160*750*332 1160*750*332
C D (EF) 925*850 925*850 925*850
Mounting size A B
Weight Kg 72.4 72.4 72.4
Model Unit CUM040**B
HP HP 4
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 24.2 24.2 17.6
kcal/h TD(5) kcal/h 3632 3026 1584
TD(7) kcal/h 5085 4236 2218
TD(10) kcal/h 7264 6052 3168
Fan diameter 350 350 350
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.1 0.1 0.1
Pole P 6 6 6
Quantity 2 2 2
Air volume /min 61 61 61
Defrost heater Body Kw 0.7*4EA 0.7*4EA
Drain Pan Kw 1.0*2EA
Fan Guide Kw
Connection tube Inlet 12.7 12.7 12.7
 Outlet 22.22 22.22 22.22
Drain A 25 25 25
Ext.dimension L W H 1360*750*332 1360*750*332 1360*750*332
C D (EF) 1125*850 1125*850 1125*850
Mounting size A B
Weight Kg 92.2 92.2 92.2
Model Unit CUM050**B
HP HP 5
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 28.6 28.6 20.8
kcal/h TD(5) kcal/h 4290 3575 1872
TD(7) kcal/h 6006 5005 2621
TD(10) kcal/h 8580 7150 3744
Fan diameter 400 400 400
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.1 0.1 0.1
Pole P 6 6 6
Quantity 2 2 2
Air volume /min 72 72 72
Defrost heater Body Kw 0.85*4EA 0.85*4EA
Drain Pan Kw 1.0*2EA
Fan Guide Kw
Connection tube Inlet 15.88 15.88 15.88
 Outlet 28.58 28.58 28.58
Drain A 25 25 25
Ext.dimension L W H 1560*750*332 1560*750*332 1560*750*332
C D (EF) 1325*850 1325*850 1325*850
Mounting size A B
Weight Kg 91.8 91.8 91.8
Model Unit CUM060**B
HP HP 6
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 35.8 35.8 26
kcal/h TD(5) kcal/h 5364 4470 2339
TD(7) kcal/h 7510 6258 3275
TD(10) kcal/h 10728 8940 4678
Fan diameter 400 400 400
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.1 0.1 0.1
Pole P 6 6 6
Quantity 2 2 2
Air volume /min 90 90 90
Defrost heater Body Kw 0.85*4EA 0.85*4EA
Drain Pan Kw 1.0*2EA
Fan Guide Kw
Connection tube Inlet 15.88 15.88 15.88
 Outlet 28.58 28.58 28.58
Drain A 25 25 25
Ext.dimension L W H 1560*800*332 1560*800*332 1560*800*332
C D (EF) 1325*900 1325*900 1325*900
Mounting size A B
Weight Kg 107.6 107.6 107.6
Model Unit CUM075**B
HP HP 7.5
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 43 43 31.2
kcal/h TD(5) kcal/h 6438 5365 2808
TD(7) kcal/h 9013 7511 3931
TD(10) kcal/h 12876 10730 5616
Fan diameter 450 450 450
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.2 0.2 0.2
Pole P 6 6 6
Quantity 2 2 2
Air volume /min 108 108 108
Defrost heater Body Kw 0.85*6EA 0.85*6EA
Drain Pan Kw 1.0*2EA
Fan Guide Kw
Connection tube Inlet 15.88 15.88 15.88
 Outlet 28.58 28.58 28.58
Drain A 25 25 25
Ext.dimension L W H 1560*850*375 1560*850*375 1560*850*375
C D (EF) 1325*950 1325*950 1325*950
Mounting size A B
Weight Kg 128.4 128.4 128.4
Model Unit CUM100**B
HP HP 10
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 52.8 52.8 38.4
kcal/h TD(5) kcal/h 7920 6600 3456
TD(7) kcal/h 11088 9240 4838
TD(10) kcal/h 15840 13200 6912
Fan diameter 450 450 450
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.2 0.2 0.2
Pole P 6 6 6
Quantity 2 2 2
Air volume /min 133 133 133
Defrost heater Body Kw 1.0*6EA 1.0*6EA
Drain Pan Kw 1.2*2EA
Fan Guide Kw
Connection tube Inlet 15.88 15.88 15.88
 Outlet 34.92 34.92 34.92
Drain A 25 25 25
Ext.dimension L W H 1860*850*375 1860*850*375 1860*850*375
C D (EF) 1625*950 1625*950 1625*950
Mounting size A B
Weight Kg 150.1 150.1 150.1
Model Unit CUM120**B
HP HP 12
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 71.3 71.3 51.8
kcal/h TD(5) kcal/h 10695 8913 4662
TD(7) kcal/h 14973 12478 6527
TD(10) kcal/h 21390 17825 9324
Fan diameter 450 450 450
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.2 0.2 0.2
Pole P 6 6 6
Quantity 3 3 3
Air volume /min 180 180 180
Defrost heater Body Kw 1.1*6EA 1.1*6EA
Drain Pan Kw 1.2*2EA
Fan Guide Kw
Connection tube Inlet 15.88 15.88 15.88
 Outlet 34.92 34.92 34.92
Drain A 25 25 25
Ext.dimension L W H 2060*890*380 2060*890*380 2060*890*380
C D (EF) 1825*990 1825*990 1825*990
Mounting size A B
Weight Kg 177.7 177.7 177.7
Model Unit CUM150**B
HP HP 15
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 85.2 85.2 61.9
kcal/h TD(5) kcal/h 12780 10650 5571
TD(7) kcal/h 17892 14910 7799
TD(10) kcal/h 25560 21300 11142
Fan diameter 450 450 450
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.2 0.2 0.2
Pole P 6 6 6
Quantity 3 3 3
Air volume /min 180 180 180
Defrost heater Body Kw 1.4*6EA 1.4*6EA
Drain Pan Kw 1.2*2EA
Fan Guide Kw
Connection tube Inlet 19.05 19.05 19.05
 Outlet 41.28 41.28 41.28
Drain A 32 32 32
Ext.dimension L W H 2410*890*380 2410*890*380 2410*890*380
C D (EF) 2175*990 2175*990 2175*990
Mounting size A B
Weight Kg 209.7 209.7 209.7
Model Unit CUM200**B
HP HP 20
Spec. AM EF EL
Room temp. +10~ +15 +10~ -10 -20~ -30
Fin pitch 4.5 4.5 6.5
Heat transfer area 88.9 88.9 64.3
kcal/h TD(5) kcal/h 13335 11113 5787
TD(7) kcal/h 18669 15558 8102
TD(10) kcal/h 26670 22225 11574
Fan diameter 400 400 400
Fan & Motor Phase 3 3 3
Kilowatt Kw 0.1 0.1 0.1
Pole P 6 6 6
Quantity 4 4 4
Air volume /min 180 180 180
Defrost heater Body Kw 1.4*8EA 1.4*8EA
Drain Pan Kw 1.2*2EA
Fan Guide Kw
Connection tube Inlet 19.05 19.05 19.05
 Outlet 41.28 41.28 41.28
Drain A 32 32 32
Ext.dimension L W H 2510*850*380 2510*850*380 2510*850*380
C D (EF) 2275*950 2275*950 2275*950
Mounting size A B
Weight Kg 243.2 243.2 243.2
