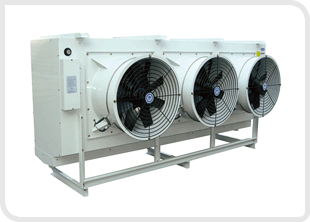

Unit cooler CUK-D

主页 > CDUs 制冷单元 > Unit cooler CUK-D

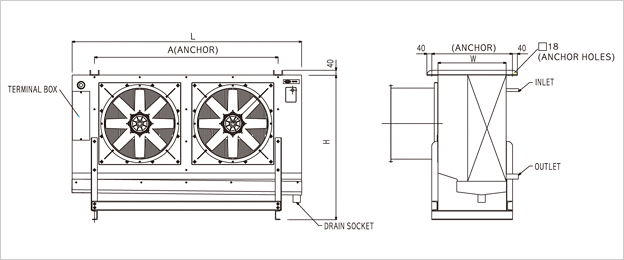

  图纸 & 规格

Model Unit CUK151E*B
HP HP 15
Spec. F L
Room temp. +10 ~ -10℃ -20~ -30℃
Fin pitch 6.5 8.5
Heat transfer area 85.7 89.7
kcal/h TD(5) kcal/h 8340 6160
TD(7) kcal/h 12844 9856
TD(10) kcal/h 20016 15840
Fan diameter Φ500 Φ550
Fan & Motor Phase 3 3
Kilowatt Kw 0.4 0.4
Pole P 6 6
Quantity 2 2
Air volume /min 196 238
Defrost heater Body Kw 1.0*12EA 1.1*14EA
Drain Pan Kw 1.2*1EA 1.2*2EA
Fan Guide Kw ㅡ 0.15*2EA
Connection tube Inlet Φ22.22 Φ22.22
 Outlet Φ41.28 Φ41.28
Drain A 40 40
Ext.dimension L W H 1850*550*1165 1850*550*1165
C D (EF) 1480*650 1480*650
Mounting size A B
Weight Kg 225 230
Model Unit CUK201E*B
HP HP 20
Spec. F L
Room temp. +10 ~ -10℃ -20~ -30℃
Fin pitch 6.5 8.5
Heat transfer area 97.5 102.1
kcal/h TD(5) kcal/h 9490 7007
TD(7) kcal/h 14615 11211
TD(10) kcal/h 22776 18018
Fan diameter Φ550 Φ600
Fan & Motor Phase 3 3
Kilowatt Kw 0.4 0.4
Pole P 6 6
Quantity 2 2
Air volume /min 238 260
Defrost heater Body Kw 1.1*12EA 1.1*14EA
Drain Pan Kw 1.2*2EA 1.2*2EA
Fan Guide Kw ㅡ 0.15*2EA
Connection tube Inlet Φ22.22 Φ22.22
 Outlet Φ41.28 Φ41.28
Drain A 40 40
Ext.dimension L W H 2050*580*1165 2050*580*1165
C D (EF) 1680*680 1680*680
Mounting size A B
Weight Kg 240 265
Model Unit CUK251E*B
HP HP 25
Spec. F L
Room temp. +10 ~ -10℃ -20~ -30℃
Fin pitch 6.5 8.5
Heat transfer area 116 121.5
kcal/h TD(5) kcal/h 11290 8344
TD(7) kcal/h 17387 13350
TD(10) kcal/h 27096 21456
Fan diameter Φ600 Φ600
Fan & Motor Phase 3 3
Kilowatt Kw 0.4 0.4
Pole P 6 6
Quantity 2 2
Air volume /min 260 260
Defrost heater Body Kw 1.3*12EA 1.3*14EA
Drain Pan Kw 1.2*2EA 1.2*2EA
Fan Guide Kw ㅡ 0.15*2EA
Connection tube Inlet Φ28.58 Φ28.58
 Outlet Φ41.28 Φ41.28
Drain A 40 40
Ext.dimension L W H 2200*600*1242 2200*600*1242
C D (EF) 1830*700 1830*700
Mounting size A B
Weight Kg 260 295
Model Unit CUK301E*B
HP HP 30
Spec. F L
Room temp. +10 ~ -10℃ -20~ -30℃
Fin pitch 6.5 8.5
Heat transfer area 132.1 138.4
kcal/h TD(5) kcal/h 12860 9499
TD(7) kcal/h 19804 15198
TD(10) kcal/h 30864 24426
Fan diameter Φ600 Φ600
Fan & Motor Phase 3 3
Kilowatt Kw 0.4 0.4
Pole P 6 6
Quantity 2 2
Air volume /min 260 362
Defrost heater Body Kw 1.3*14EA 1.5*16EA
Drain Pan Kw 1.2*2EA 1.2*2EA
Fan Guide Kw ㅡ 0.15*3EA
Connection tube Inlet Φ28.58 Φ28.58
 Outlet Φ53.98 Φ53.98
Drain A 50 50
Ext.dimension L W H 2450*600*1242 2450*600*1242
C D (EF) 2080*700 2080*700
Mounting size A B
Weight Kg 275 345
Model Unit CUK351E*B
HP HP 35
Spec. F L
Room temp. +10 ~ -10℃ -20~ -30℃
Fin pitch 6.5 8.5
Heat transfer area 154.7 162
kcal/h TD(5) kcal/h 15050 11123
TD(7) kcal/h 23177 17797
TD(10) kcal/h 36120 28602
Fan diameter Φ550 Φ600
Fan & Motor Phase 3 3
Kilowatt Kw 0.4 0.75
Pole P 6 6
Quantity 3 3
Air volume /min 362 428
Defrost heater Body Kw 1.5*14EA 1.5*16EA
Drain Pan Kw 1.2*2EA 1.2*2EA
Fan Guide Kw ㅡ 0.15*3EA
Connection tube Inlet Φ28.58 Φ28.58
 Outlet Φ53.98 Φ53.98
Drain A 50 50
Ext.dimension L W H 2800*600*1242 2800*600*1242
C D (EF) (810*3)*700 (810*3)*700
Mounting size A B
Weight Kg 335 360
Model Unit CUK401E*B
HP HP 35
Spec. F L
Room temp. +10 ~ -10℃ -20~ -30℃
Fin pitch 6.5 8.5
Heat transfer area 154.7 175.5
kcal/h TD(5) kcal/h 15050 12047
TD(7) kcal/h 23177 19275
TD(10) kcal/h 36120 30978
Fan diameter Φ550 Φ600
Fan & Motor Phase 3 3
Kilowatt Kw 0.4 0.75
Pole P 6 6
Quantity 3 3
Air volume /min 362 428
Defrost heater Body Kw 1.5*14EA 1.7*16EA
Drain Pan Kw 1.2*2EA 1.2*2EA
Fan Guide Kw ㅡ 0.15*3EA
Connection tube Inlet Φ28.58 Φ28.58
 Outlet Φ53.98 Φ53.98
Drain A 50 50
Ext.dimension L W H 2800*600*1242 2800*600*1318
C D (EF) (810*3)*700 (810*3)*700
Mounting size A B
Weight Kg 335 395
Model Unit CUK451E*B
HP HP 45
Spec. F L
Room temp. +10 ~ -10℃ -20~ -30℃
Fin pitch 6.5 8.5
Heat transfer area 181.5 190.2
kcal/h TD(5) kcal/h 17670 13055
TD(7) kcal/h 27212 20888
TD(10) kcal/h 42408 33570
Fan diameter Φ600 Φ600
Fan & Motor Phase 3 3
Kilowatt Kw 0.75 0.75
Pole P 6 6
Quantity 3 3
Air volume /min 362 428
Defrost heater Body Kw 1.7*15EA 1.9*15EA
Drain Pan Kw 1.2*2EA 1.2*2EA
Fan Guide Kw ㅡ 0.15*3EA
Connection tube Inlet Φ28.58 Φ28.58
 Outlet Φ53.98 Φ53.98
Drain A 50 50
Ext.dimension L W H 3000*600*1318 3000*600*1318
C D (EF) (875*3)*700 (875*3)*700
Mounting size A B
Weight Kg 390 410
