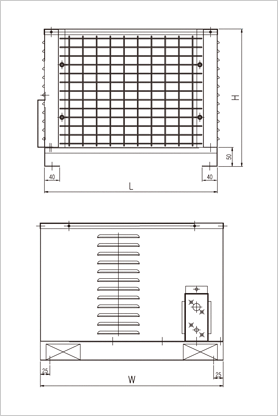

图纸 & 规格
| Model | Unit | CBH015SM | |
| Nominal output | HP | 1.5 | |
| Refrigeration ton | RT | 0.9 | |
| Power | 1, 220V, 60Hz | ||
| Refrigerant, ET | R22, +10 ~ -23 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | պ(Hermetic Reciprocating) | |
| Model | CR18KQ-PFV | ||
| Rated output | Kw | 1.12 | |
| Displacement | /h | 7.66 | |
| Rated ampere | Amp | 9 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 16.3 | ||
| Air volume | /min | 28 | |
| Fan diameter | 300 | ||
| Motor output | Kw | 0.01 | |
| Refrigeration Oil | Model | 2 | |
| Oil charge | NONE | ||
| Receiver tank | DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT | ||
| Accumulator | STOP VALVE, FILTER DRIER | ||
| Safety equipment | ڰ, , , , ڴ | ||
| Inner parts | 15.88 | ||
| Control panel parts | |||
| Connection tube | Suction line | 9.52 | |
| Displacement | 560 | ||
| Liquid line | 600 | ||
| Ext. dimension | L | 475 | |
| W | 46 | ||
| H | |||
| Weight | Kg | ||
| Model | Unit | CBH020SM | |
| Nominal output | HP | 2 | |
| Refrigeration ton | RT | 1.09 | |
| Power | 1, 220V, 60Hz / 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, +10 ~ -23 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | պ(Hermetic Reciprocating) | |
| Model | CR24KQ-PFV/TFD | ||
| Rated output | Kw | 2.2 | |
| Displacement | /h | 8.62 | |
| Rated ampere | Amp | 13.5/3.7 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 19 | ||
| Air volume | /min | 40 | |
| Fan diameter | 350 | ||
| Motor output | Kw | 0.01 | |
| Refrigeration Oil | Model | 2.4 | |
| Oil charge | NONE | ||
| Receiver tank | DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT | ||
| Accumulator | STOP VALVE, FILTER DRIER | ||
| Safety equipment | ڰ, , , , ڴ | ||
| Inner parts | 15.88 | ||
| Control panel parts | |||
| Connection tube | Suction line | 9.52 | |
| Displacement | 590 | ||
| Liquid line | 605 | ||
| Ext. dimension | L | 510 | |
| W | 89 | ||
| H | |||
| Weight | Kg | ||
| Model | Unit | CBH030SM | |
| Nominal output | HP | 3 | |
| Refrigeration ton | RT | 1.69 | |
| Power | 1, 220V, 60Hz / 3, 380V, 60Hz | ||
| Refrigerant, ET | R22, +10 ~ -23 | ||
| Installment condition | ǿܼġ, -15 ~ +40 | ||
| Compressor | Type | պ(Hermetic Reciprocating) | |
| Model | CR37KQ-PFV/TFD | ||
| Rated output | Kw | 3.7 | |
| Displacement | /h | 14.37 | |
| Rated ampere | Amp | 18.5/5.6 | |
| Condenser | Type | CORRUGATED FIN & CU TUBE | |
| Heat transfer area | 29.5 | ||
| Air volume | /min | 50 | |
| Fan diameter | 400 | ||
| Motor output | Kw | 0.1 | |
| Refrigeration Oil | Model | 2.4 | |
| Oil charge | NONE | ||
| Receiver tank | DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT | ||
| Accumulator | STOP VALVE, FILTER DRIER | ||
| Safety equipment | ڰ, , , , ڴ | ||
| Inner parts | 15.88 | ||
| Control panel parts | |||
| Connection tube | Suction line | 9.52 | |
| Displacement | 705 | ||
| Liquid line | 705 | ||
| Ext. dimension | L | 605 | |
| W | 92 | ||
| H | |||
| Weight | Kg | ||
