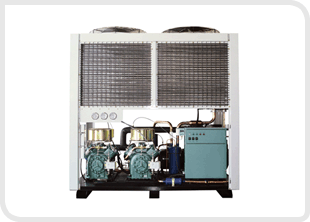

Semi-Hermetic air cooled CDU CPG

Home > CDU > Semi-Hermetic air cooled CDU CPG




  Drawings & Spec

Model Unit CPG1002L
Nominal output HP 10
Refrigeration ton RT 4.7
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -20 / -25 ~ -40 (인젝션 사용시)
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L37M9H＊2
Rated output Kw 3.7＊2
Displacement ㎥/h 19.9*2
Rated ampere Amp 7+ 7
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 75
Air volume ㎥/min 200
Fan diameter ㎜ Φ500×2EA
Motor output Kw 0.3KW × 2
Receiver tank ℓ 15
Accumulator ℓ 6
Safety equipment 　 DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ34.93
Displacement ㎜
Liquid line ㎜ Φ15.88

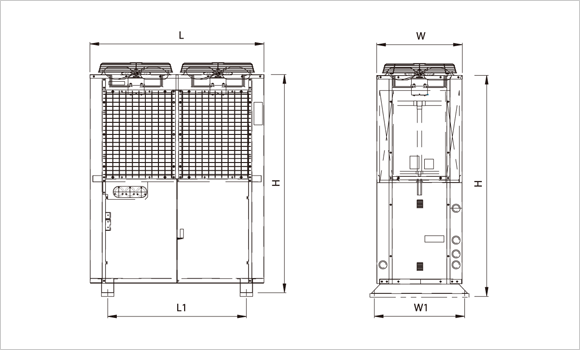

Ext. dimension L1/L2 ㎜ 1345/1045
W1/W2 ㎜ 728/778
H ㎜ 1535
Weight Kg 479
Model Unit CPG1252L
Nominal output HP 12.5
Refrigeration ton RT 5.96
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -20 / -25 ~ -40 (인젝션 사용시)
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L37M9H/ C-L55M9D
Rated output Kw 3.7+5.5
Displacement ㎥/h 19.9+30.7
Rated ampere Amp 7+11
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 112.5
Air volume ㎥/min 300
Fan diameter ㎜ Φ600×2EA
Motor output Kw 0.5KW × 2
Receiver tank ℓ 23
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ41.28
Displacement ㎜
Liquid line ㎜ Φ15.88
Ext. dimension L1/L2 ㎜ 1620/1320
W1/W2 ㎜ 828/878
H ㎜ 1735
Weight Kg 593
Model Unit CPG1502L
Nominal output HP 15
Refrigeration ton RT 7.22
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -20 / -25 ~ -40 (인젝션 사용시)
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L55M9D＊2
Rated output Kw 5.5＊2
Displacement ㎥/h 30.7*2
Rated ampere Amp 11+11
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 112.5
Air volume ㎥/min 300
Fan diameter ㎜ Φ600×2EA
Motor output Kw 0.5KW × 2
Receiver tank ℓ 23
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ41.28
Displacement ㎜
Liquid line ㎜ Φ15.88
Ext. dimension L1/L2 ㎜ 1620/1320
W1/W2 ㎜ 828/878
H ㎜ 1735
Weight Kg 601
Model Unit CPG2002L
Nominal output HP 20
Refrigeration ton RT 11.2
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -20 / -25 ~ -40 (인젝션 사용시)
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L75M9I＊2
Rated output Kw 7.5＊2
Displacement ㎥/h 47.7*2
Rated ampere Amp 14.5+14.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 149.5
Air volume ㎥/min 400
Fan diameter ㎜ Φ700×2EA
Motor output Kw 0.6KW × 2
Receiver tank ℓ 36
Accumulator ℓ 23
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 1810/1510
W1/W2 ㎜ 928/978
H ㎜ 1835
Weight Kg 801
Model Unit CPG2502L
Nominal output HP 25
Refrigeration ton RT 13.06
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -20 / -25 ~ -40 (인젝션 사용시)
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L75M9I/ C-L113M9I
Rated output Kw 7.5+11
Displacement ㎥/h 47.7+63.4
Rated ampere Amp 14.5+20.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 187.5
Air volume ㎥/min 450
Fan diameter ㎜ Φ600×3EA
Motor output Kw 0.5KW × 3
Receiver tank ℓ 47
Accumulator ℓ 23
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 2255/1955
W1/W2 ㎜ 928/978
H ㎜ 1835
Weight Kg 859
Model Unit CPG3002L
Nominal output HP 30
Refrigeration ton RT 14.92
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -20 / -25 ~ -40 (인젝션 사용시)
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L113M9I＊2
Rated output Kw 11＊2
Displacement ㎥/h 63.4*2
Rated ampere Amp 20.5+20.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 224.8
Air volume ㎥/min 600
Fan diameter ㎜ Φ700×3EA
Motor output Kw 0.6KW × 3
Receiver tank ℓ 47
Accumulator ℓ 23
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 2645/2345
W1/W2 ㎜ 928/978
H ㎜ 1835
Weight Kg 903
Model Unit CPG3502L
Nominal output HP 35
Refrigeration ton RT 17.86
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -20 / -25 ~ -40 (인젝션 사용시)
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L113M9I/ C-L150M9I
Rated output Kw 11+15
Displacement ㎥/h 63.4+88.7
Rated ampere Amp 20.5+30.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 308.1
Air volume ㎥/min 600
Fan diameter ㎜ Φ700×3EA
Motor output Kw 0.6KW × 3
Receiver tank ℓ 47
Accumulator ℓ 23
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ28.58
Ext. dimension L1/L2 ㎜ 3425/3125
W1/W2 ㎜ 928/978
H ㎜ 1935
Weight Kg 993
