Hermetic air cooled CDU

Home > CDU > Hermetic air cooled CDU

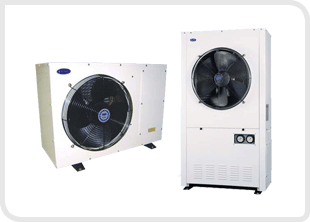

Simple and compact Design
Energy saving
State of the art aesthetic design
Easy to install and service

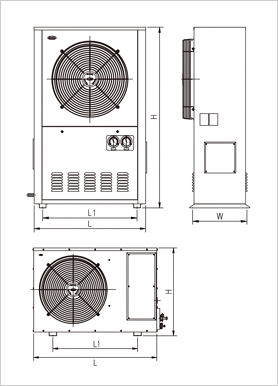

  Drawings & Spec

Model Unit CIH020SM
Nominal output HP 2
Refrigeration ton RT 1.01
Power 　 1ø, 220V, 60Hz / 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +10 ~ -23
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식 (Hermetic Reciprocating)
Model 　 CR24KQ - PFV / TFD
Rated output Kw 1.5
Displacement ㎥/h 8.62
Rated ampere Amp 13.4/4.2
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 20.5
Air volume ㎥/min 53
Fan diameter ㎜ 400
Motor output Kw 0.1
Refrigeration Oil Model 　 2.4
Oil charge ℓ NONE
Receiver tank ℓ DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT,
Accumulator ℓ STOP VALVE(액관, 흡입관), FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ15.88
Control panel parts 　
Connection tube Suction line ㎜ Φ9.52
Displacement ㎜ 952
Liquid line ㎜ 488
Ext. dimension L ㎜ 679
W ㎜ 89
H ㎜
Weight Kg
Model Unit CIH030SM
Nominal output HP 3
Refrigeration ton RT 1.69
Power 　 1ø, 220V, 60Hz / 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +10 ~ -23
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식 (Hermetic Reciprocating)
Model 　 CR37KQ - PFV / TFD
Rated output Kw 2.2
Displacement ㎥/h 14.37
Rated ampere Amp 18.5/5.6
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 27.3
Air volume ㎥/min 73
Fan diameter ㎜ 450
Motor output Kw 0.1
Refrigeration Oil Model 　 2.4
Oil charge ℓ NONE
Receiver tank ℓ DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT,
Accumulator ℓ STOP VALVE(액관, 흡입관), FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ15.88
Control panel parts 　
Connection tube Suction line ㎜ Φ9.52
Displacement ㎜ 952
Liquid line ㎜ 488
Ext. dimension L ㎜ 679
W ㎜ 92
H ㎜
Weight Kg
Model Unit CIH040SM
Nominal output HP 4
Refrigeration ton RT 2
Power 　 1ø, 220V, 60Hz / 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +10 ~ -23
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식 (Hermetic Reciprocating)
Model 　 CR47KQ - PFV / TFD
Rated output Kw 3
Displacement ㎥/h 17.05
Rated ampere Amp 25/8.2
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 39.2
Air volume ㎥/min 93
Fan diameter ㎜ 500
Motor output Kw 0.25
Refrigeration Oil Model 　 6.5
Oil charge ℓ NONE
Receiver tank ℓ DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT,
Accumulator ℓ STOP VALVE(액관, 흡입관), FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ19.05
Control panel parts 　
Connection tube Suction line ㎜ Φ12.70
Displacement ㎜ 1100
Liquid line ㎜ 472
Ext. dimension L ㎜ 870
W ㎜ 110
H ㎜
Weight Kg
Model Unit CIH050SM
Nominal output HP 5
Refrigeration ton RT 2.52
Power 　 1ø, 220V, 60Hz / 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +10 ~ -23
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식 (Hermetic Reciprocating)
Model 　 CRNQ - 0500 - PFV / TFD
Rated output Kw 3.7
Displacement ㎥/h 21.42
Rated ampere Amp 34.3 / 9.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 46.8
Air volume ㎥/min 93
Fan diameter ㎜ 500
Motor output Kw 0.25
Refrigeration Oil Model 　 6.5
Oil charge ℓ NONE
Receiver tank ℓ DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT,
Accumulator ℓ STOP VALVE(액관), FILTER DRIER, SIGHT GLASS, CRANKCASE HEATER
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ22.23
Control panel parts 　
Connection tube Suction line ㎜ Φ12.70
Displacement ㎜ 800
Liquid line ㎜ 460
Ext. dimension L ㎜ 1510
W ㎜ 135
H ㎜
Weight Kg
