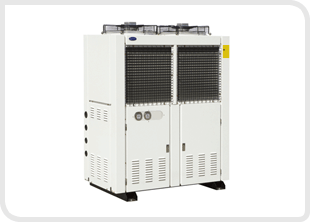

Semi-Hermetic air cooled CDU CPB

Home > CDU > Semi-Hermetic air cooled CDU CPB

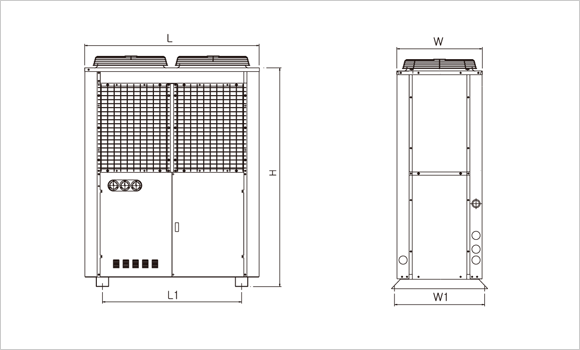

  Drawings & Spec

Model Unit CPB050SM
Nominal output HP 5
Refrigeration ton RT 2.56
Power 　 3ø, 220V / 380V, 60Hz
Refrigerant, ET ℃ R22, +12.5 ~ -30
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 4FC - 5.2 - 20D
Rated output Kw 4
Displacement ㎥/h 21.78
Rated ampere Amp 21.7/ 12.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 37.4
Air volume ㎥/min 100
Fan diameter ㎜ Φ400×2EA
Motor output Kw 0.1KW × 2
Receiver tank ℓ 6.5
Accumulator ℓ 3.4
Safety equipment 　 DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ28.58
Displacement ㎜
Liquid line ㎜ Φ12.7
Ext. dimension L1/L2 ㎜ 1160/850
W1/W2 ㎜ 585/638
H ㎜ 1475
Weight Kg 250
Model Unit CPB075SM
Nominal output HP 7.5
Refrigeration ton RT 3.81
Power 　 3ø, 220V / 380V, 60Hz
Refrigerant, ET ℃ R22, +12.5 ~ -30
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 4DC - 7.2 - 20D
Rated output Kw 5.5
Displacement ㎥/h 32.39
Rated ampere Amp 31.9/ 18.4
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 50
Air volume ㎥/min 180
Fan diameter ㎜ Φ500×2EA
Motor output Kw 0.3KW × 2
Receiver tank ℓ 8.7
Accumulator ℓ 3.8
Safety equipment 　 DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ34.93
Displacement ㎜
Liquid line ㎜ Φ15.88
Ext. dimension L1/L2 ㎜ 1345/1045
W1/W2 ㎜ 688/738
H ㎜ 1535
Weight Kg 310
Model Unit CPB100SM
Nominal output HP 10
Refrigeration ton RT 4.69
Power 　 3ø, 220V / 380V, 60Hz
Refrigerant, ET ℃ R22, +12.5 ~ -30
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 4V - 10.2 - 20D
Rated output Kw 7.5
Displacement ㎥/h 39.91
Rated ampere Amp 48/ 26.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 75
Air volume ㎥/min 200
Fan diameter ㎜ Φ500×2EA
Motor output Kw 0.3KW × 2
Receiver tank ℓ 12
Accumulator ℓ 5.8
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ34.93
Displacement ㎜
Liquid line ㎜ Φ15.88
Ext. dimension L1/L2 ㎜ 1345/1045
W1/W2 ㎜ 728/778
H ㎜ 1535
Weight Kg 360
Model Unit CPB150SM
Nominal output HP 15
Refrigeration ton RT 6.69
Power 　 3ø, 220V / 380V, 60Hz
Refrigerant, ET ℃ R22, +12.5 ~ -30
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 4P - 15.2 - 20D
Rated output Kw 11
Displacement ㎥/h 56.89
Rated ampere Amp 71/ 39.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 112.5
Air volume ㎥/min 300
Fan diameter ㎜ Φ600×2EA
Motor output Kw 0.5KW × 2
Receiver tank ℓ 26
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ41.28
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 1620/1320
W1/W2 ㎜ 828/878
H ㎜ 1735
Weight Kg 570
Model Unit CPB200SM
Nominal output HP 20
Refrigeration ton RT 7.96
Power 　 3ø, 220V / 380V, 60Hz
Refrigerant, ET ℃ R22, +12.5 ~ -30
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 4N - 20.2 - 20D
Rated output Kw 15
Displacement ㎥/h 67.71
Rated ampere Amp 84.5/ 47
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 149.5
Air volume ㎥/min 400
Fan diameter ㎜ Φ700×2EA
Motor output Kw 0.6KW × 2
Receiver tank ℓ 26
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ41.28
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 1810/1510
W1/W2 ㎜ 928/978
H ㎜ 1835
Weight Kg 600
Model Unit CPB250SM
Nominal output HP 25
Refrigeration ton RT 10.45
Power 　 3ø, 220V / 380V, 60Hz
Refrigerant, ET ℃ R22, +12.5 ~ -30
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 4H - 25.2 - 20D
Rated output Kw 18.5
Displacement ㎥/h 88.83
Rated ampere Amp 103/ 57
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 187.4
Air volume ㎥/min 450
Fan diameter ㎜ Φ600×3EA
Motor output Kw 0.5KW × 3
Receiver tank ℓ 41
Accumulator ℓ 23
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 2255/1955
W1/W2 ㎜ 928/978
H ㎜ 1835
Weight Kg 750
Model Unit CPB300SM
Nominal output HP 30
Refrigeration ton RT 11.99
Power 　 3ø, 220V / 380V, 60Hz
Refrigerant, ET ℃ R22, +12.5 ~ -30
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 4G - 30.2 - 20D
Rated output Kw 22
Displacement ㎥/h 101.98
Rated ampere Amp 121/ 67.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 224.8
Air volume ㎥/min 600
Fan diameter ㎜ Φ700×3EA
Motor output Kw 0.6KW × 3
Receiver tank ℓ 41
Accumulator ℓ 23
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 2645/2345
W1/W2 ㎜ 928/978
H ㎜ 1835
Weight Kg 820
