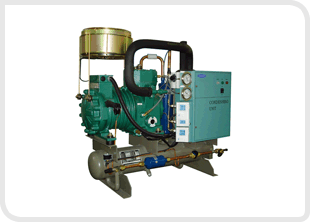

Separated single air cooled

Home > CDU > Separated single air cooled




  Drawings & Spec

Model Unit CRG050SL
Nominal output HP 5
Refrigeration ton RT 2.6
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L37M9H
Rated output Kw 3.7
Displacement ㎥/h 21.9
Rated ampere Amp 10
Receiver tank ℓ 16
Accumulator ℓ 3.6
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ22.23
Displacement ㎜
Liquid line ㎜ Φ12.70
Ext. dimension L1/L2 ㎜ 900/650
W2/W1 ㎜ 360/280
H ㎜ 769
Weight Kg 136
Model Unit CRG075SL
Nominal output HP 7.5
Refrigeration ton RT 3.6
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L55M9D
Rated output Kw 5.5
Displacement ㎥/h 30.7
Rated ampere Amp 16
Receiver tank ℓ 14
Accumulator ℓ 6
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ28.58
Displacement ㎜
Liquid line ㎜ Φ15.88
Ext. dimension L1/L2 ㎜ 900/650
W2/W1 ㎜ 360/280
H ㎜ 769
Weight Kg 146
Model Unit CRG100SL
Nominal output HP 10
Refrigeration ton RT 5.6
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L75M9I
Rated output Kw 7.5
Displacement ㎥/h 47.6
Rated ampere Amp 21
Receiver tank ℓ 28
Accumulator ℓ 6
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ28.58
Displacement ㎜
Liquid line ㎜ Φ15.88
Ext. dimension L1/L2 ㎜ 1087/650
W2/W1 ㎜ 360/280
H ㎜ 914
Weight Kg 200
Model Unit CRG150SL
Nominal output HP 15
Refrigeration ton RT 7.5
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L113M9I
Rated output Kw 11
Displacement ㎥/h 63.4
Rated ampere Amp 29
Receiver tank ℓ 28
Accumulator ℓ 8.3
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ34.93
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 1087/650
W2/W1 ㎜ 360/280
H ㎜ 914
Weight Kg 205
Model Unit CRG200SL
Nominal output HP 20
Refrigeration ton RT 10.4
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L150M9I
Rated output Kw 15
Displacement ㎥/h 88.4
Rated ampere Amp 45
Receiver tank ℓ 49
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Connection tube Suction line ㎜ Φ41.28
Displacement ㎜
Liquid line ㎜ Φ22.22
Ext. dimension L1/L2 ㎜ 1200/650
W2/W1 ㎜ 600/500
H ㎜ 938
Weight Kg 276
