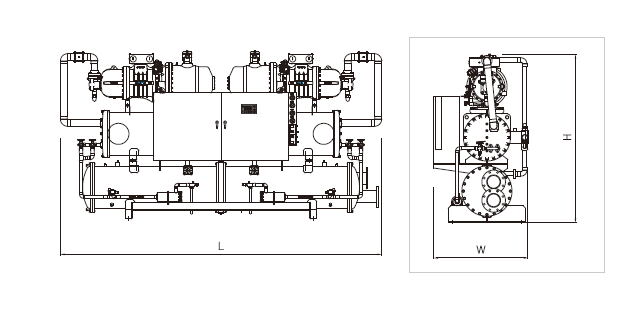

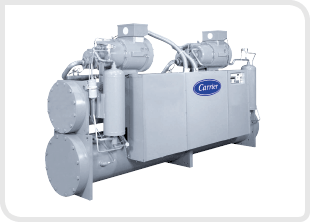

Drawings & Spec
| Model | Unit | CWW080DA-X3S | |
| Nominal output | HP | 40*2 | |
| Cooling capacity | kcl/h | 216800 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3150 |
| Width | mm | 950 | |
| Height | mm | 1570 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-113*2 | ||
| Motor output | KW | 60 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 56.6 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 43.4 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 6*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 100 |
| Water tube | A | 100 | |
| Weight | Kg | 2400 | |
| Operating weight | Kg | 2800 | |
| Model | Unit | CWW100DA-X3S | |
| Nominal output | HP | 50*2 | |
| Cooling capacity | kcl/h | 277800 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3180 |
| Width | mm | 950 | |
| Height | mm | 1630 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-133*2 | ||
| Motor output | KW | 74 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 72 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 55.6 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 6*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 100 |
| Water tube | A | 100 | |
| Weight | Kg | 2700 | |
| Operating weight | Kg | 3100 | |
| Model | Unit | CWW120DA-X3S | |
| Nominal output | HP | 60*2 | |
| Cooling capacity | kcl/h | 309600 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3180 |
| Width | mm | 1010 | |
| Height | mm | 1670 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-163*2 | ||
| Motor output | KW | 90 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 79 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 62 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 6*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 100 |
| Water tube | A | 125 | |
| Weight | Kg | 3000 | |
| Operating weight | Kg | 3400 | |
| Model | Unit | CWW140DA-X3S | |
| Nominal output | HP | 70*2 | |
| Cooling capacity | kcl/h | 359000 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3630 |
| Width | mm | 1010 | |
| Height | mm | 1800 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-183*2 | ||
| Motor output | KW | 105 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 91.6 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 71.8 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 7*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 125 |
| Water tube | A | 125 | |
| Weight | Kg | 3500 | |
| Operating weight | Kg | 4000 | |
| Model | Unit | CWW160DA-X3S | |
| Nominal output | HP | 80*2 | |
| Cooling capacity | kcl/h | 415000 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3630 |
| Width | mm | 1060 | |
| Height | mm | 1890 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-213*2 | ||
| Motor output | KW | 120 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 105.8 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 83 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 7*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 125 |
| Water tube | A | 125 | |
| Weight | Kg | 3800 | |
| Operating weight | Kg | 4400 | |
| Model | Unit | CWW200DA-X3S | |
| Nominal output | HP | 100*2 | |
| Cooling capacity | kcl/h | 510200 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3840 |
| Width | mm | 1120 | |
| Height | mm | 1980 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-255*2 | ||
| Motor output | KW | 150 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 129.4 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 102 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 10*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 150 |
| Water tube | A | 150 | |
| Weight | Kg | 4100 | |
| Operating weight | Kg | 4700 | |
| Model | Unit | CWW240DA-X3S | |
| Nominal output | HP | 120*2 | |
| Cooling capacity | kcl/h | 614600 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 3840 |
| Width | mm | 1120 | |
| Height | mm | 2000 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-305*2 | ||
| Motor output | KW | 180 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 156 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 123 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 10*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 150 |
| Water tube | A | 150 | |
| Weight | Kg | 4600 | |
| Operating weight | Kg | 5300 | |
| Model | Unit | CWW280DA-X3S | |
| Nominal output | HP | 140*2 | |
| Cooling capacity | kcl/h | 732200 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 4170 |
| Width | mm | 1250 | |
| Height | mm | 2150 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-353*2 | ||
| Motor output | KW | 210 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 185.2 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 146.4 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 14*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 150 |
| Water tube | A | 150 | |
| Weight | Kg | 4800 | |
| Operating weight | Kg | 5400 | |
| Model | Unit | CWW320DA-X3S | |
| Nominal output | HP | 160*2 | |
| Cooling capacity | kcl/h | 818200 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 4170 |
| Width | mm | 1250 | |
| Height | mm | 2210 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-413*2 | ||
| Motor output | KW | 240 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 206.6 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 163.6 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 14*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 150 |
| Water tube | A | 200 | |
| Weight | Kg | 5000 | |
| Operating weight | Kg | 5600 | |
| Model | Unit | CWW360DA-X3S | |
| Nominal output | HP | 180*2 | |
| Cooling capacity | kcl/h | 908800 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 4320 |
| Width | mm | 1250 | |
| Height | mm | 2250 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-463*2 | ||
| Motor output | KW | 270 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 229.8 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 181.8 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 16*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 150 |
| Water tube | A | 200 | |
| Weight | Kg | 5600 | |
| Operating weight | Kg | 6300 | |
| Model | Unit | CWW400DA-X3S | |
| Nominal output | HP | 200*2 | |
| Cooling capacity | kcl/h | 1001400 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 4470 |
| Width | mm | 1250 | |
| Height | mm | 2300 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-503*2 | ||
| Motor output | KW | 300 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 252.2 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 200.2 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 19*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 200 |
| Water tube | A | 200 | |
| Weight | Kg | 7000 | |
| Operating weight | Kg | 7700 | |
| Model | Unit | CWW440DA-X3S | |
| Nominal output | HP | 220*2 | |
| Cooling capacity | kcl/h | 1069200 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 4470 |
| Width | mm | 1270 | |
| Height | mm | 2400 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-553*2 | ||
| Motor output | KW | 330 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 269.2 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 213.8 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 19*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 200 |
| Water tube | A | 200 | |
| Weight | Kg | 7500 | |
| Operating weight | Kg | 8300 | |
| Model | Unit | CWW480DA-X3S | |
| Nominal output | HP | 240*2 | |
| Cooling capacity | kcl/h | 1275800 | |
| Type | UNIT TYPE | ||
| Ext. dimension | Length | mm | 4590 |
| Width | mm | 1270 | |
| Height | mm | 2400 | |
| Compressor | Type | Semi-Hermetic, Twin Screw Type | |
| Model | SRC-S-603*2 | ||
| Motor output | KW | 360 | |
| Locked rotor type | Y ─ △기 동 | ||
| Condenser | Type | Horizontal Shell & Tube Type | |
| Inlet/Outlet temp. | ℃ | 입 구 32℃ / 출 구 37℃ | |
| Cooling water volume | ㎥/h | 324.8 | |
| Evaporator | Type | Horizontal Shell & Tube Type | |
| Inlet & Outlet temp. | ℃ | 입 구 12℃ / 출 구 7℃ | |
| Water volume | ㎥/h | 255.2 | |
| Refrigerant | R - 22 | ||
| Refrigerant control type | Thermal Expansion Valve | ||
| Oil | Model | CP-421-320 | |
| Oil Charge | ℓ | 20*2 | |
| Volume control | % | 50%~100% 무단제어 (또는 25%,50%,75%,100% 4단제어:옵션) | |
| Power | Power | AC 3ph 380V, 440V / 60Hz | |
| Control Power | AC 1ph 220V 60Hz | ||
| Safety equipment | 고.저압력스위치, 안전밸브, 압축기모터과열방지기(EPM), 과전류계전기, 동결방지용 온도조절기,토출온도조절기,플로우 스위치 | ||
| Connection tube | Cooling water tube | A | 200 |
| Water tube | A | 250 | |
| Weight | Kg | 8000 | |
| Operating weight | Kg | 9000 | |
