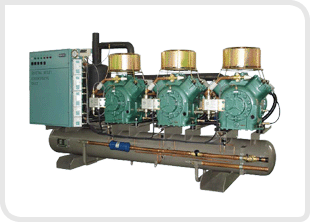

3 Bank

Home > CDU > 3 Bank




  Drawings & Spec

Model Unit CCG1503
Nominal output HP 15
Refrigeration ton RT 7.8
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L37M9H＊3
Rated output Kw 3.7＊3
Displacement ㎥/h 45.1＊3
Rated ampere Amp 7+7+7
Receiver tank ℓ 53
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 기동CONDENSER,단자대
Connection tube Suction line ㎜ Φ41.28
Displacement ㎜
Liquid line ㎜ Φ22.23

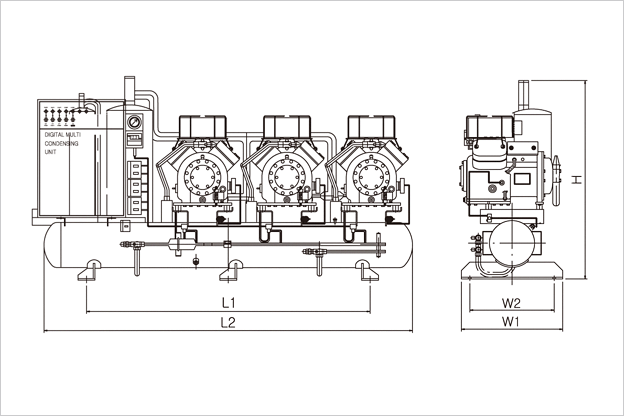

Ext. dimension L1/L2 ㎜ 1470 / 1842
W2/W1 ㎜ 600/500
H ㎜ 1032
Weight Kg 366
Model Unit CCG1753
Nominal output HP 17.5
Refrigeration ton RT 8.8
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L37M9H＊2/ C-L55M9D
Rated output Kw 3.7＊2+5.5
Displacement ㎥/h 45.1+45.1+63.1
Rated ampere Amp 7+7+11
Receiver tank ℓ 53
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 기동CONDENSER,단자대
Connection tube Suction line ㎜ Φ41.28
Displacement ㎜
Liquid line ㎜ Φ22.23
Ext. dimension L1/L2 ㎜ 1470 / 1842
W2/W1 ㎜ 600/500
H ㎜ 1032
Weight Kg 396
Model Unit CCG2003
Nominal output HP 20
Refrigeration ton RT 9.8
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L37M9H/ C-L55M9D＊2
Rated output Kw 3.7+5.5＊2
Displacement ㎥/h 45.1+63.1+63.1
Rated ampere Amp 7+11+11
Receiver tank ℓ 53
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 기동CONDENSER,단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ22.23
Ext. dimension L1/L2 ㎜ 1470 / 1842
W2/W1 ㎜ 600/500
H ㎜ 1032
Weight Kg 456
Model Unit CCG2253
Nominal output HP 22.5
Refrigeration ton RT 10.8
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L55M9D＊3
Rated output Kw 5.5＊3
Displacement ㎥/h 63.1＊3
Rated ampere Amp 11+11+11
Receiver tank ℓ 53
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 기동CONDENSER,단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ22.23
Ext. dimension L1/L2 ㎜ 1470 / 1842
W2/W1 ㎜ 600/500
H ㎜ 1032
Weight Kg 612
Model Unit CCG2503
Nominal output HP 25
Refrigeration ton RT 12.8
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L55M9D＊2/ C-L75M9I
Rated output Kw 5.5＊2+7.5
Displacement ㎥/h 63.1+63.1+98.1
Rated ampere Amp 11+11+14.5
Receiver tank ℓ 53
Accumulator ℓ 13
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 기동CONDENSER,단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ22.23
Ext. dimension L1/L2 ㎜ 1470 / 2193
W2/W1 ㎜ 600/500
H ㎜ 1165
Weight Kg 630
Model Unit CCG3003
Nominal output HP 30
Refrigeration ton RT 16.8
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L75M9I＊3
Rated output Kw 7.5＊3
Displacement ㎥/h 98.1＊3
Rated ampere Amp 14.5+14.5+14.5
Receiver tank ℓ 110
Accumulator ℓ 23
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 기동CONDENSER,단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ28.58
Ext. dimension L1/L2 ㎜ 1470 / 2193
W2/W1 ㎜ 600/500
H ㎜ 1165
Weight Kg 652
Model Unit CCG3503
Nominal output HP 35
Refrigeration ton RT 18.7
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, -5 ~ -40
Installment condition ℃ 실외설치, -15 ~ +35
Compressor Type 　 반밀폐형 왕복동식(Semi-hermetic Reciprocating)
Model 　 C-L75M9I＊2/ C-L113M9I
Rated output Kw 7.5＊2+11
Displacement ㎥/h 98.1+98.1+130.5
Rated ampere Amp 14.5+14.5+20.5
Receiver tank ℓ 110
Accumulator ℓ 23
Safety equipment 　 DUAL PRESSURE SWITCH, OIL PRESSURE SWITCH, INTERNAL THERMOSTAT, FUSIBLE PLUG(75℃)
Inner parts 　 STOP VALVE, FILTER DRIER, SIGHT GLASS
Control panel parts 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 기동CONDENSER,단자대
Connection tube Suction line ㎜ Φ53.98
Displacement ㎜
Liquid line ㎜ Φ28.58
Ext. dimension L1/L2 ㎜ 1470 / 2193
W2/W1 ㎜ 600/500
H ㎜ 1165
Weight Kg 662
