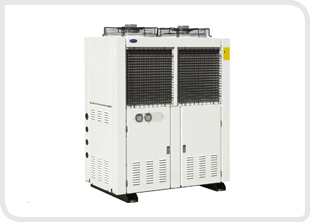

Simple and compact Design
Energy saving
State of the art aesthetic design
Easy to install and service

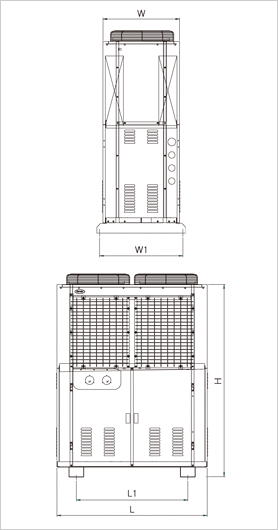

  Drawings & Spec

Model Unit CPZ075SM
Nominal output HP 7.5
Refrigeration ton RT
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +15 ~ -20
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 ZB48KQ
Rated output Kw
Displacement ㎥/h
Rated ampere Amp
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡
Air volume ㎥/min 180
Fan diameter ㎜ Φ500×2EA
Motor output Kw 0.3KW × 2
Refrigeration Oil Model 　 6.5
Oil charge ℓ
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ22.22
Control panel parts 　
Connection tube Suction line ㎜ Φ15.88
Displacement ㎜ 1345/1045
Liquid line ㎜ 688/738
Ext. dimension L ㎜ 1535
W ㎜ 280
H ㎜
Weight Kg
Model Unit CPZ100SM
Nominal output HP 10
Refrigeration ton RT
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +15 ~ -20
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 ZB76KQ
Rated output Kw
Displacement ㎥/h
Rated ampere Amp
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡
Air volume ㎥/min 200
Fan diameter ㎜ Φ500×2EA
Motor output Kw 0.3KW × 2
Refrigeration Oil Model 　 8.7
Oil charge ℓ
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ34.93
Control panel parts 　
Connection tube Suction line ㎜ Φ15.88
Displacement ㎜ 1345/1045
Liquid line ㎜ 728/778
Ext. dimension L ㎜ 1535
W ㎜ 320
H ㎜
Weight Kg
Model Unit CPZ150SM
Nominal output HP 15
Refrigeration ton RT
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +15 ~ -20
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 ZB95KQ
Rated output Kw
Displacement ㎥/h
Rated ampere Amp
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡
Air volume ㎥/min 300
Fan diameter ㎜ Φ600×2EA
Motor output Kw 0.5KW × 2
Refrigeration Oil Model 　 12
Oil charge ℓ
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ34.93
Control panel parts 　
Connection tube Suction line ㎜ Φ22.22
Displacement ㎜ 1620/1320
Liquid line ㎜ 828/878
Ext. dimension L ㎜ 1735
W ㎜ 520
H ㎜
Weight Kg
Model Unit CPH075SM
Nominal output HP 7.5
Refrigeration ton RT 3.35
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +15 ~ -25
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 MT80-9
Rated output Kw 5.5
Displacement ㎥/h 28.51
Rated ampere Amp 22.5
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡
Air volume ㎥/min 180
Fan diameter ㎜ Φ500×2EA
Motor output Kw 0.3KW × 2
Refrigeration Oil Model 　 6.5
Oil charge ℓ
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ22.22
Control panel parts 　
Connection tube Suction line ㎜ Φ15.88
Displacement ㎜ 1345/1045
Liquid line ㎜ 688/738
Ext. dimension L ㎜ 1535
W ㎜ 280
H ㎜
Weight Kg
Model Unit CPH100SM
Nominal output HP 10
Refrigeration ton RT 4.23
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +15 ~ -25
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 MT100-9
Rated output Kw 7.5
Displacement ㎥/h 35.96
Rated ampere Amp 26
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡
Air volume ㎥/min 200
Fan diameter ㎜ Φ500×2EA
Motor output Kw 0.3KW × 2
Refrigeration Oil Model 　 8.7
Oil charge ℓ
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ34.93
Control panel parts 　
Connection tube Suction line ㎜ Φ15.88
Displacement ㎜ 1345/1045
Liquid line ㎜ 728/778
Ext. dimension L ㎜ 1535
W ㎜ 320
H ㎜
Weight Kg
Model Unit CPH150SM
Nominal output HP 15
Refrigeration ton RT 6.71
Power 　 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +15 ~ -25
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 MT160-9
Rated output Kw 10.8
Displacement ㎥/h 57.03
Rated ampere Amp 46
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡
Air volume ㎥/min 300
Fan diameter ㎜ Φ600×2EA
Motor output Kw 0.5KW × 2
Refrigeration Oil Model 　 12
Oil charge ℓ
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER, SIGHT GLASS
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ34.93
Control panel parts 　
Connection tube Suction line ㎜ Φ22.22
Displacement ㎜ 1620/1320
Liquid line ㎜ 828/878
Ext. dimension L ㎜ 1735
W ㎜ 520
H ㎜
Weight Kg
