Hermetic air cooled box type

Home > CDU > Hermetic air cooled box type

Simple and compact Design
Energy saving
State of the art aesthetic design
Easy to install and service

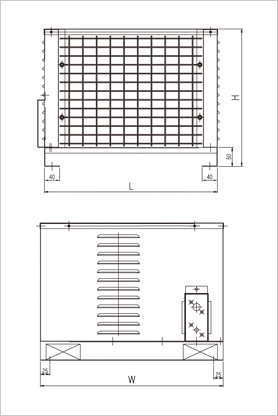

  Drawings & Spec

Model Unit CBH015SM
Nominal output HP 1.5
Refrigeration ton RT 0.9
Power 　 1ø, 220V, 60Hz
Refrigerant, ET ℃ R22, +10 ~ -23
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 CR18KQ-PFV
Rated output Kw 1.12
Displacement ㎥/h 7.66
Rated ampere Amp 9
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 16.3
Air volume ㎥/min 28
Fan diameter ㎜ 300
Motor output Kw 0.01
Refrigeration Oil Model 　 2
Oil charge ℓ NONE
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ15.88
Control panel parts 　
Connection tube Suction line ㎜ Φ9.52
Displacement ㎜ 560
Liquid line ㎜ 600
Ext. dimension L ㎜ 475
W ㎜ 46
H ㎜
Weight Kg
Model Unit CBH020SM
Nominal output HP 2
Refrigeration ton RT 1.09
Power 　 1ø, 220V, 60Hz / 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +10 ~ -23
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 CR24KQ-PFV/TFD
Rated output Kw 2.2
Displacement ㎥/h 8.62
Rated ampere Amp 13.5/3.7
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 19
Air volume ㎥/min 40
Fan diameter ㎜ 350
Motor output Kw 0.01
Refrigeration Oil Model 　 2.4
Oil charge ℓ NONE
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ15.88
Control panel parts 　
Connection tube Suction line ㎜ Φ9.52
Displacement ㎜ 590
Liquid line ㎜ 605
Ext. dimension L ㎜ 510
W ㎜ 89
H ㎜
Weight Kg
Model Unit CBH030SM
Nominal output HP 3
Refrigeration ton RT 1.69
Power 　 1ø, 220V, 60Hz / 3ø, 380V, 60Hz
Refrigerant, ET ℃ R22, +10 ~ -23
Installment condition ℃ 실외설치, -15 ~ +40
Compressor Type 　 밀폐형 왕복동식(Hermetic Reciprocating)
Model 　 CR37KQ-PFV/TFD
Rated output Kw 3.7
Displacement ㎥/h 14.37
Rated ampere Amp 18.5/5.6
Condenser Type 　 CORRUGATED FIN & CU TUBE
Heat transfer area ㎡ 29.5
Air volume ㎥/min 50
Fan diameter ㎜ 400
Motor output Kw 0.1
Refrigeration Oil Model 　 2.4
Oil charge ℓ NONE
Receiver tank ℓ DUAL PRESSURE SWITCH, INTERNAL THERMOSTAT
Accumulator ℓ STOP VALVE, FILTER DRIER
Safety equipment 　 전자개폐기, 보조계전기, 휴즈, 과전류계전기, 단자대
Inner parts 　 Φ15.88
Control panel parts 　
Connection tube Suction line ㎜ Φ9.52
Displacement ㎜ 705
Liquid line ㎜ 705
Ext. dimension L ㎜ 605
W ㎜ 92
H ㎜
Weight Kg
