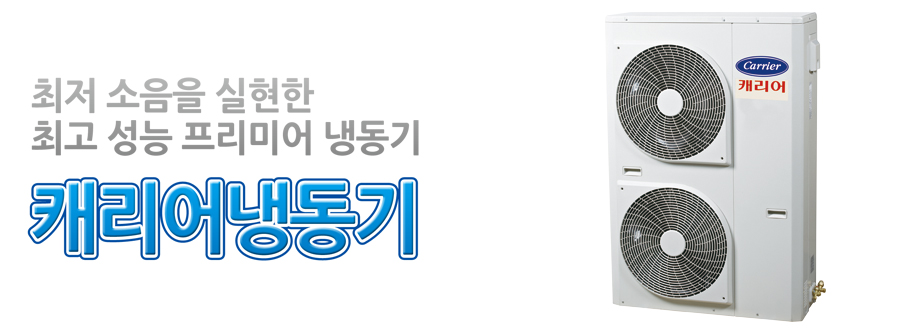

밀폐 CDU(7.5HP)

> 저온시스템 > 밀폐 CDU(7.5HP)




항목(Spec.) 단위(Unit) CLZC75SM (XN3,XE3,XP3)
공칭용량(Nominal output) HP 7.5
법정냉동능력(Refrigeration ton) RT 1.09
전원(Power) 3PH 60Hz 380V
냉매 및 증발온도(Refrigerant, ET) R22, +10 ~ -10
냉동능력 kcal/h 11,200
압축기(Compressor) 형식 (Type) 밀폐형 스크롤식
모델 (Model) ZB48KQ-TF7
정격출력(Rated output) Kw 5.625
토출량(Displacement) ㎥/h 22.63
운전전류(RLA) Amp 10.7
기동전류(LRA) Amp 100
응축기(Condenser) 형식 (Type) CORRUGATED FIN & CU TUBE
전열면적(Heat transfer area) 66
풍량(Air volume) ㎥/min 127
Fan직경(Fan diameter) φ500 x 2EA
전동기출력(Motor output) kW 3φ, 6P.103W x2
냉동유(Refrigeration Oil) 종류 SUNISO-3GSD
초기충진량(Oil charge) 1.77
수액기용량 (Receiver tank) 4.2
보호장치(Safety equipment) DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT
내장부품(Inner parts) STOP VALVE,FILTER DRIER,SIGHT GLASS
제어반내장부품(Control panel parts) 전자접촉기,전자개폐기, 차단기, 단자대, HARNESS, INJECTION S/V, DTS
배관규격(Connection tube) 흡입관(Suction line) Φ22.22
액관(Liquid line) Φ12.7
외형치수(Ext. dimension) L 907
W 353
H 1364
제품중량(Weight) Kg 105
항목(Spec.) 단위(Unit) CLZC75SM (ZN3,ZE3,ZP3)
공칭용량(Nominal output) HP 7.5
법정냉동능력(Refrigeration ton) RT 2.75
전원(Power) 3PH 60Hz 380V
냉매 및 증발온도(Refrigerant, ET) R404A, +10 ~ -10
냉동능력 kcal/h 11,200
압축기(Compressor) 형식 (Type) 밀폐형 스크롤식
모델 (Model) ZB48KQE-TF7
정격출력(Rated output) Kw 5.625
토출량(Displacement) ㎥/h 22.63
운전전류(RLA) Amp 10.7
기동전류(LRA) Amp 100
응축기(Condenser) 형식 (Type) CORRUGATED FIN & CU TUBE
전열면적(Heat transfer area) 66
풍량(Air volume) ㎥/min 127
Fan직경(Fan diameter) φ500 x 2EA
전동기출력(Motor output) kW 3φ, 6P.103W x2
냉동유(Refrigeration Oil) 종류 ESTER OIL
초기충진량(Oil charge) 1.77
수액기용량 (Receiver tank) 4.2
보호장치(Safety equipment) DUAL PRESSURE SWITCH, HIGH PRESSURE SWITCH, INTERNAL THERMOSTAT
내장부품(Inner parts) STOP VALVE,FILTER DRIER,SIGHT GLASS
제어반내장부품(Control panel parts) 전자접촉기,전자개폐기, 차단기, 단자대, HARNESS, INJECTION S/V, DTS
배관규격(Connection tube) 흡입관(Suction line) Φ22.22
액관(Liquid line) Φ12.7
외형치수(Ext. dimension) L 907
W 353
H 1364
제품중량(Weight) Kg 105
